Description

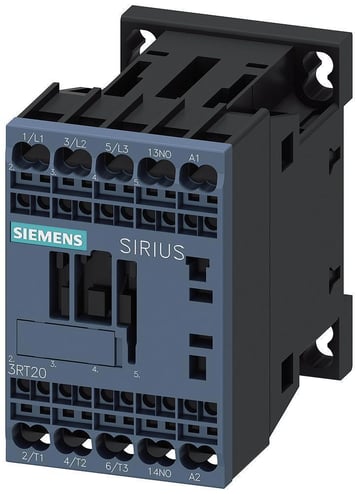

Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 110 VAC Coil, 9 A Maximum Load Current, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 4 kW Wattage, Auxiliary Contact, 3NO Contact Configuration, 1 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.8/0.75, SZ 00 Size, Spring Loaded Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 70 mm H x 45 mm W x 73 mm D Dimensions
The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.
Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC
Specifications
GTIN: 00662643908145
UNSPSC: 39121529
Country of Origin: Germany
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Enclosure Type | IP20 |
| Coil Voltage | 110 VAC |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Operating Cycles | 30000000 Cycles |
| Contact Type | Auxiliary |
| Number of Auxiliary Contacts | 1 |
| BABA Compliant | No |
| Power Factor | 0.8/0.75 |
| Dimensions | 70 mm H x 45 mm W x 73 mm D |
| Size | SZ 00 |
| Coil Power Rating | 7-1/2 hp |
| Wattage | 4 kW |
| Maximum Load Current | 9 A |
| Terminal Type | Spring Loaded |
| Type | 3-Phase Non-Reversing |
| Sold as | EACH |
