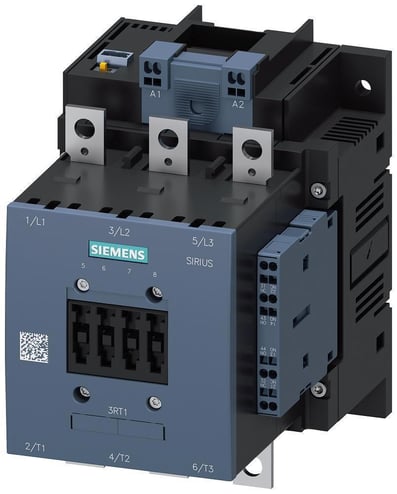

Siemens SIRIUS 3RT10542NF36 3-Phase Standard Power Contactor With Varistor, Electronic PLC Interface, 96 to 127 VACVDC Coil, 115 A, 3NO Contact, 3 Poles
Siemens SIRIUS 3RT10542NF36 3-Phase Standard Power Contactor With Varistor, Electronic PLC Interface, 96 to 127 VACVDC Coil, 115 A, 3NO Contact, 3 Poles
MPN 3RT10542NF36
ASPN SIE3RT10542NF36
UPC 804766419409
Description
Features
- 280 VA pickup, 4.4 VA holding coil power
- 0.8 closing, 0.5 holding power factor
Specifications
GTIN: 00804766419409
UNSPSC: 39121529
Country of Origin: Germany
| Type | 3-Phase Standard |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 55 kW at 400 V 3-Phase |
| Enclosure Type | IP00/IP20 |
| Mounting Type | Threaded |
| Series | 3RT10 |
| Contact Configuration | 3NO |
| Contact Rating | A600/Q600 |
| Operating Cycles | 10000000 |
| Number of Auxiliary Contacts | 2NO-2NC |
| BABA Compliant | No |
| Power Factor | 0.5/0.8 |
| Wattage | 280 VA Pickup, 4.4 VA Holding, 320 W DC Closing, 2.8 W DC Holding |
| Coil Voltage | 96 to 127 VAC/VDC |
| Terminal Type | Busbar/Spring Loaded |
| Maximum Load Current | 115 A |
| Dimensions | 172 mm H x 120 mm W x 170 mm D |
| Volume | 307.6 cubic inches |
| Size | S6 |
| Sold as | EACH |
