Description

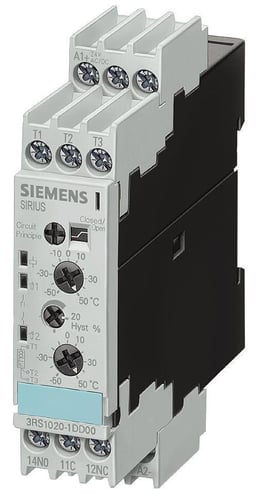

Siemens Temperature Monitoring Relay, Adjustable, 50/60 Hz, 24 VAC/VDC Coil, Screw Terminal, Analog, 0 to 200 deg C, 22.5 mm W x 91 mm D x 102 mm H
The 3RS10 temperature monitoring relays are specialized in the measuring of temperatures in solid, liquid and gaseous media. The temperature is detected via sensors inside the medium, then evaluated by the device and monitored for exceedance or shortfall of the limit temperatures. Depending on the parameterization, the output relay switches on or off upon reaching of the threshold values.
Features
- Easy operation via rotary potentiometer
- Selectable hysteresis
- Selectable operating principle for devices with two threshold values
- Undershoot two threshold value
- PT100 sensor
Specifications
GTIN: 00754554870205
UNSPSC: 39122229
Country of Origin: Germany
| Type | Adjustable |
|---|---|
| Terminal Type | Screw |
| Frequency Rating | 50/60 Hz |
| Weight | 26.5 lbs |
| Width | 12.5 in |
| Dimensions | 22.5 mm W x 91 mm D x 102 mm H |
| Coil Voltage | 24 V AC/DC |
| Temperature Rating | 0 to 200 deg C |
| Display Type | Analog |
| BABA Compliant | No |
| Sold as | EACH |
