Description

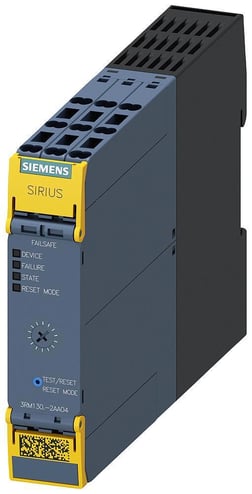

SIRIUS Motor Starter, Series: 3RM1, 500 VAC, 2 A, 50/60 Hz Frequency, 0.09 to 0.75 kW Wattage, 3/4 hp Motor, 24 VDC Coil, 3 Pole, 90 to 120 ms On/40 to 55 ms Off Timing, 3 ph, Push-In Connection, Reversing Action, Solid-State Overload Relay, 1CO Auxiliary, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, 100 mm H x 22.5 mm W x 141.6 mm D Dimensions
Features
- Hybrid technology benefits of semiconductor technology and relay technology
- Screw and snap-on mounting onto 35 mm standard mounting rail vertical, horizontal or standing
Specifications
GTIN: 00887621776312
UNSPSC: 39121521
Country of Origin: Germany
| Operating Temperature | -25 to 60 deg C |
|---|---|
| Number of Poles | 3 |
| Auxiliary Contact Rating | 1CO |
| Wattage | 0.09 to 0.75 kW |
| Timing | 90 to 120 ms On/40 to 55 ms Off |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 500 V AC |
| Width | 8.7 in |
| Enclosure Type | IP20 |
| Dimensions | 100 mm H x 22.5 mm W x 141.6 mm D |
| Motor Power | 3/4 hp |
| Coil Voltage | 24 V DC |
| Series | 3RM1 |
| Connection Type | Push-In |
| Phase | 3 |
| Action | Reversing |
| Amperage Rating | 2 A |
| Operating Cycles | 30000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
