Description

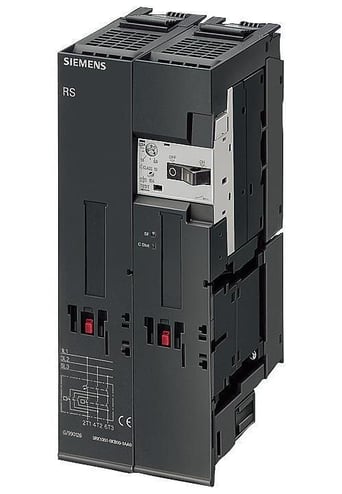

Siemens SIMATIC Motor Starter, Reversing, Series: 3RK1, 200 to 400 VAC, 6.3 A, 50/60 Hz Frequency, 2.2 kW Motor, 20.4 to 28.8 VDC Coil, 3 Pole, Setting: 4.5 to 6.3 A, 3 ph, Screw Terminal Connection, Bi-Metal Overload Relay, IP20 Enclosure, 100000 Cycles Operating Cycles, 0 to 60 deg C Operating, 265 mm H x 90 mm W x 120 mm D Dimensions
Features
- 2.2 kW at 400 VAC 50 Hz 3-phase motor power
Specifications
GTIN: 00040892691733
UNSPSC: 39121521
Country of Origin: Germany
| Type | Reversing |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Weight | 19 lbs |
| Enclosure Type | IP20 |
| Setting | 4.5 to 6.3 A |
| Coil Voltage | 20.4 to 28.8 V DC |
| Connection Type | Screw Terminal |
| Phase | 3 |
| Overload Relay | Bi-Metal |
| BABA Compliant | No |
| Operating Cycles | 100000 Cycles |
| Amperage Rating | 6.3 A |
| Series | 3RK1 |
| Motor Power | 2.2 kW |
| Dimensions | 265 mm H x 90 mm W x 120 mm D |
| Width | 1.2 in |
| Voltage Rating | 200 to 400 V AC |
| Operating Temperature | 0 to 60 deg C |
| Sold as | EACH |
