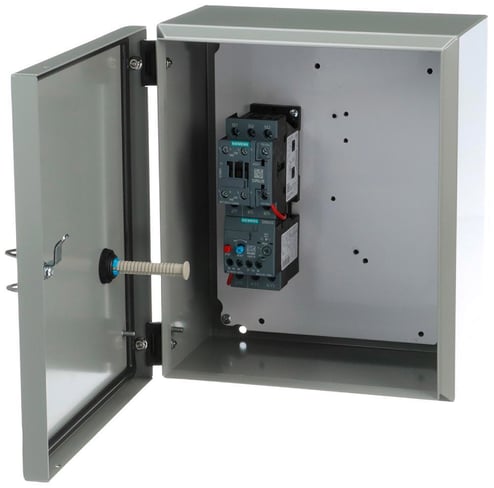

Siemens 3RE41226CA354SY0 Water/Dust-Tight Full Voltage Non-Combination Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 3/3R/4/12 Enclosure


Description

Siemens Motor Starter, Water/Dust-Tight Full Voltage Non-Combination, 600 VAC, 20 hp Motor, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 3 Pole, Setting: 3 to 12 A, 8 to 40 ms On/4 to 16 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Non-Reversing Action, Solid-State Overload Relay, 10 A at 600 VAC, 2.5 A at 600 VDC Auxiliary, NEMA 3/3R/4/12 Enclosure, 10000000 cycles Operating Cycles, -4 to 104 deg F Operating, 10 in W x 6 in D x 12 in H Dimensions

3RE4 Enclosed IEC motor controllers are well suited for both industrial and commercial applications. They are durable and dependable, particularly when it comes to motor protection. Protecting the performance of motors is a critical priority and the 3RE4 enclosed starters are offered with either thermal or solid-state overload relays to maximize your motor protection.

Specifications

GTIN: 00804766734502

UNSPSC: 39121521

Alternative Part Number: 14827000

Country of Origin: United States of America (the)

Phase
3
BABA Compliant
No
Operating Cycles
10000000 cycles
Voltage Rating
600 VAC
Number of Poles
3
Type
Water/Dust-Tight Full Voltage Non-Combination
Operating Temperature
-4 to 104 deg F
Timing
8 to 40 ms On/4 to 16 ms Off
Reset Type
Automatic/Manual/Remote
Overload Relay
Solid-State
Auxiliary Contact Rating
10 A at 600 VAC, 2.5 A at 600 VDC
Enclosure Type
NEMA 3/3R/4/12
Dimensions
10 in W x 6 in D x 12 in H
Setting
3 to 12 A
Motor Power
20 hp
Coil Voltage
110 VAC at 50 Hz, 120 VAC at 60 Hz
Connection Type
Screw Terminal
Action
Non-Reversing
Weight
165 lbs
Sold as
EACH
