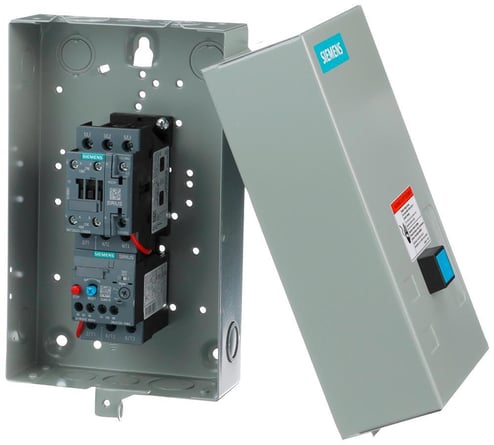

Siemens 3RE41226AA354VB0 Full Voltage Non-Combination Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure


Description

Siemens Motor Starter, Full Voltage Non-Combination, 600 VAC, 20 hp Motor, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 3 Pole, Setting: 10 to 40 A, 8 to 40 ms On/4 to 16 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Non-Reversing Action, Solid-State Overload Relay, 10 A at 600 VAC, 2.5 A at 600 VDC Auxiliary, START/STOP Pushbutton Control, NEMA 1 Enclosure, 10000000 cycles Operating Cycles, -4 to 104 deg F Operating, 7 in W x 5 in D x 11 in H Dimensions

3RE4 Enclosed IEC motor controllers are well suited for both industrial and commercial applications. They are durable and dependable, particularly when it comes to motor protection. Protecting the performance of motors is a critical priority and the 3RE4 enclosed starters are offered with either thermal or solid-state overload relays to maximize your motor protection.

Specifications

GTIN: 00804766740688

UNSPSC: 39121521

Country of Origin: United States of America (the)

Number of Poles
3
Voltage Rating
600 VAC
Phase
3
BABA Compliant
No
Coil Voltage
110 VAC at 50 Hz, 120 VAC at 60 Hz
Enclosure Type
NEMA 1
Operating Temperature
-4 to 104 deg F
Overload Relay
Solid-State
Operating Cycles
10000000 cycles
Connection Type
Screw Terminal
Action
Non-Reversing
Reset Type
Automatic/Manual/Remote
Dimensions
7 in W x 5 in D x 11 in H
Width
3.2 in
Type
Full Voltage Non-Combination
Control Type
START/STOP Pushbutton
Auxiliary Contact Rating
10 A at 600 VAC, 2.5 A at 600 VDC
Timing
8 to 40 ms On/4 to 16 ms Off
Weight
50 lbs
Setting
10 to 40 A
Motor Power
20 hp
Sold as
EACH
