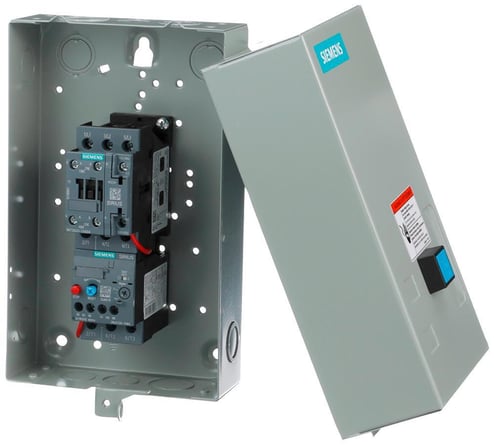

Siemens 3RE41224AA314DB0 Full Voltage Non-Combination Motor Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure


Description

Siemens Motor Starter, Full Voltage Non-Combination, 600 VAC, 60 Hz Frequency, 10 hp Motor, 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil, 3 Pole, Setting: 20 to 25 A, 9 to 38 ms On/4 to 16 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Non-Reversing Action, Bi-Metal Overload Relay, 10 A at 600 VAC, 2.5 A at 600 VDC Auxiliary, START/STOP Pushbutton Control, NEMA 1 Enclosure, 30000000 cycles Operating Cycles, -4 to 104 deg F Operating, 7 in W x 5 in D x 11 in H Dimensions

3RE4 Enclosed IEC motor controllers are well suited for both industrial and commercial applications. They are durable and dependable, particularly when it comes to motor protection. Protecting the performance of motors is a critical priority and the 3RE4 enclosed starters are offered with either thermal or solid-state overload relays to maximize your motor protection.

Specifications

GTIN: 00804766739200

UNSPSC: 39121521

Country of Origin: United States of America (the)

Type
Full Voltage Non-Combination
Operating Temperature
-4 to 104 deg F
Control Type
START/STOP Pushbutton
Number of Poles
3
Auxiliary Contact Rating
10 A at 600 VAC, 2.5 A at 600 VDC
Timing
9 to 38 ms On/4 to 16 ms Off
Frequency Rating
60 Hz
Voltage Rating
600 V AC
Weight
9 lbs
Enclosure Type
NEMA 1
Dimensions
7 in W x 5 in D x 11 in H
Setting
20 to 25 A
Motor Power
10 hp
Coil Voltage
110 V AC at 50 Hz, 120 V AC at 60 Hz
Connection Type
Screw Terminal
Phase
3
Action
Non-Reversing
Reset Type
Automatic/Manual/Remote
Operating Cycles
30000000 cycles
Overload Relay
Bi-Metal
BABA Compliant
No
Sold as
EACH
