Description

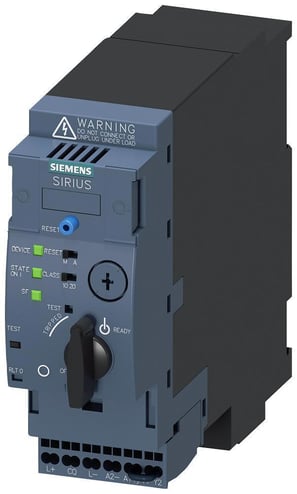

Siemens Compact Starter, Direct On-Line, 690 VAC, 1.1 A, 50/60 Hz, 750 W, 1/2 hp at 460/480/575/600 VAC Motor, 24 VDC Coil, 3 Pole, Setting: 0.32 to 1.25 A, 3 ph, Plug-In Without Terminal/Spring Loaded Terminal, 1.25 A at 480/600 VAC Full Load, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 45 mm W x 165 mm D x 191 mm H
Features
- Integrated functionality
- Very high operational reliability
- Safe disconnection
- Communications integration through AS-interface
- Communications integration using IO-link
- Permanent wiring/easy replacement
- Consistent solution from the infeed to the motor feeder
- Compact design saves space in the control cabinet
- Little planning and assembly work and far less wiring thanks to a single complete unit with one article number
- Low variance and therefore low stock levels, with two wide voltage ranges and five wide setting ranges for the rated current
- High plant availability through integrated functionalities such as prevention of main contact welding and disconnection at end of service life
- Enhanced productivity through automatic device reset in case of overload and differentiated detection of overload and short circuit
- Easy checking of the wiring and testing of the motor direction prior to start-up thanks to optional control kits
- Speedy replacement of devices thanks to removable terminals with spring-type and screw connections in the main and control circuit
- Efficient power distribution through the related SIRIUS infeed system for 3RA6
- Direct connection of the motor feeder cable to the SIRIUS infeed system for 3RA6 thanks to integrated PE bar
- Connecting and looping through of incoming feeders up to a cross-section of 70 sq-mm
- When using the infeed system for 3RA6, possibility of directly connecting the motor cable without intermediate terminals
- Integration in totally integrated automation thanks to the optional connection to AS-interface or IO-link
Specifications
GTIN: 00662643527421
UNSPSC: 39121521
Country of Origin: Germany
| Type | Direct On-Line |
|---|---|
| Operating Temperature | -20 to 60 deg C |
| Number of Poles | 3 |
| Wattage | 750 W |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 V AC |
| Full Load Current | 1.25 A at 480/600 VAC |
| Enclosure Type | IP20 |
| Dimensions | 45 mm W x 165 mm D x 191 mm H |
| Setting | 0.32 to 1.25 A |
| Motor Power | 1/2 hp at 460/480/575/600 VAC |
| Coil Voltage | 24 V DC |
| Connection Type | Plug-In Without Terminal/Spring Loaded Terminal |
| Phase | 3 |
| Amperage Rating | 1.1 A |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Sold as | EACH |
