Description

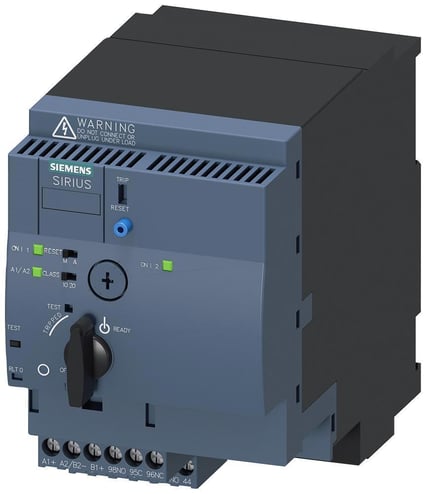

Siemens SIRIUS Compact Starter, Load Feeder Reversing, 690 VAC, 0.3/0.32/0.35/0.4 A, 50/60 Hz, 90/120/180 W, 24 VAC/VDC Coil, 3 Poles, Setting: 0.1 to 0.4 A, 3 ph Phase, Plug-In, 0.4 A Full Load, 0.27/10 A Auxiliary, IP20, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 170 mm H x 90 mm W x 165 mm D
Features
- 90 W at 400 V AC-3, 90 W at 400 V, 120 W at 500 V, 180 W at 690 V AC-43 wattage
- 0.4 A at 400 V AC-3, 0.3 A at 400 V, 0.32 A at 500 V, 0.35 A at 690 V AC-43 amperage rating
- 0.4 A at 480/600 VAC full load current
- 10 A at AC-12, 0.27 A at 250 V DC-13 auxiliary contact rating
- Without terminals
Specifications
GTIN: 00662643359718
UNSPSC: 39121521
Country of Origin: Germany
| Operating Temperature | -20 to 60 deg C |
|---|---|
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 V AC |
| Weight | 22.4 lbs |
| Width | 22 in |
| Enclosure Type | IP20 |
| Coil Voltage | 24 V AC/DC |
| Phase | 3 |
| Amperage Rating | 0.3/0.32/0.35/0.4 A |
| Operating Cycles | 10000000 Cycles |
| BABA Compliant | No |
| Dimensions | 170 mm H x 90 mm W x 165 mm D |
| Connection Type | Plug-In |
| Setting | 0.1 to 0.4 A |
| Full Load Current | 0.4 A |
| Wattage | 90/120/180 W |
| Auxiliary Contact Rating | 0.27/10 A |
| Type | Load Feeder Reversing |
| Sold as | EACH |
