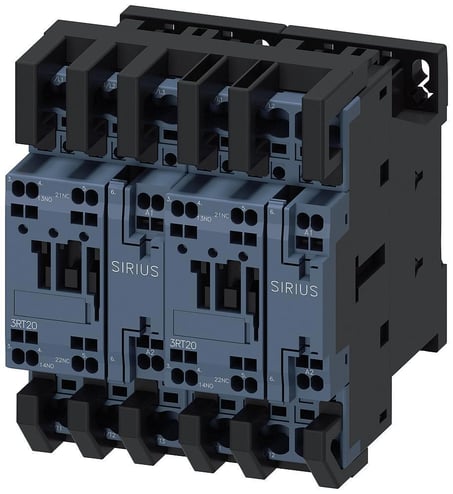

Siemens 3RA23288XB302AG2 3RA23 Reversing Contactor Assembly With Mechanical and Electrical Interlock, 110 VAC V Coil, 38 A, 3NO-0NC Contact, 3 Poles


Description

Siemens Contactor Assembly, Reversing, Series: 3RA23, 110 VAC Coil, 38 A Maximum Load Current, 77 VA Pickup, 9.8 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 18.5 kW Wattage, 3NO-0NC Contact Configuration, Power Factor: 0.82 Closing, 0.27 Holding, S0 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 90 mm W x 97 mm D x 114 mm H Dimensions

The fully wired reversing contactor assemblies are suitable for use in any climate. They are safe from touch to EN 50274. The contactor assemblies each consist of two contactors with identical ratings. The contactors are mechanically and electrically interlocked (NC contact interlock). For motor protection, either 3RU2 or 3RB3 overload relays for direct mounting or individual mounting or thermistor motor protection tripping units must be ordered separately.

Features

  • Contactors come equipped with integrated 1NO and 1NC auxiliary contacts in each contactor
  • Both electrical interlocking and latching are satisfied with the integrated auxiliaries
  • Mechanical interlocking is required in either size and comes in the assembly kits except for size S2 where you need to order 3RA2934-2B interlock separately
  • 10000000 cycles contactor/10000000 cycles with added auxiliary switch block

Specifications

GTIN: 00662643905670

UNSPSC: 39121529

Country of Origin: Germany

Operating Temperature
-25 to 60 deg C
Terminal Type
Spring
Number of Poles
3
Frequency Rating
50/60 Hz
Size
S0
Width
1.8 in
Enclosure Type
IP20
Coil Voltage
110 V AC
Mounting Type
Surface/Threaded/DIN Rail/Snap-On
Contact Configuration
3NO
Operating Cycles
10000000 Cycles
BABA Compliant
No
Power Factor
0.82 Closing, 0.27 Holding
Volume
991.9 cubic inches
Series
3RA23
Dimensions
90 mm W x 97 mm D x 114 mm H
Coil Power Rating
77 VA Pickup, 9.8 VA Holding
Wattage
18.5 kW
Maximum Load Current
38 A
Type
Reversing
Sold as
EACH
