Siemens

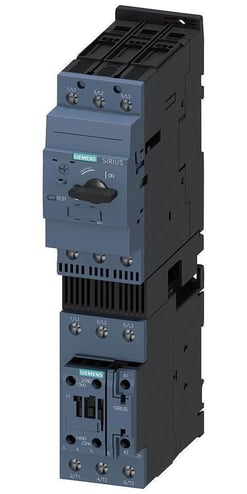

Siemens SIRIUS 3RA21504JA370NB3 SZ 2 Direct On Line Fuseless Load Feeder Non-Reversing Combination Starter, 20 to 33 VACVDC V Coil, 3 Poles, IP00IP20 Enclosure


Description

Siemens SIRIUS Combination Starter, SZ 2 Direct On Line Fuseless Load Feeder Non-Reversing, Series: 3RA215, 690 VAC, 65 A, 50/60 Hz Frequency, 18.5 kW, 30 kW Motor, 20 to 33 VAC/VDC Coil, 3 Pole, Setting: 54 to 65 A, Screw Terminal Connection, Thermal Bimetal Overload Relay, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 274 mm H x 55 mm W x 150 mm D Dimensions

Features

  • 18.5 kW at 230 VAC, 30 kW at 400 VAC motor power
  • 20 to 33 VAC/VDC at 50/60 Hz coil voltage

Specifications

GTIN: 00804766092039

UNSPSC: 39121521

Country of Origin: Germany

Operating Temperature
-20 to 60 deg C
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
690 V AC
Weight
5.1 lbs
Dimensions
274 mm H x 55 mm W x 150 mm D
Setting
54 to 65 A
Motor Power
18.5 kW, 30 kW
Coil Voltage
20 to 33 V AC/DC
Connection Type
Screw Terminal
Amperage Rating
65 A
Operating Cycles
10000000 Cycles
Overload Relay
Thermal Bimetal
BABA Compliant
No
Series
3RA215
Enclosure Type
IP00/20
Type
SZ 2 Direct On Line Fuseless Load Feeder Non-Reversing
Sold as
EACH
