Description

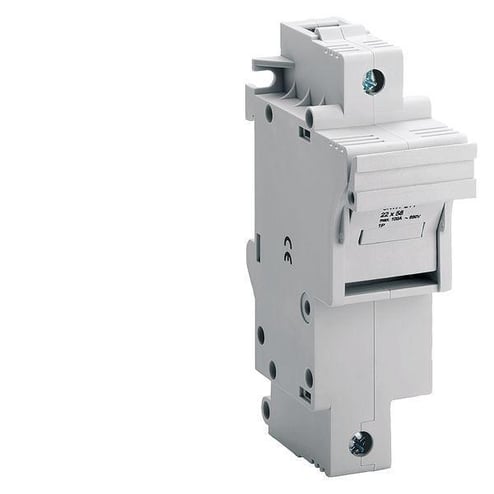

Sentron Fuse Holder, Series: 3NW72, 690 VAC, 100 A, 2 Pole, 10 to 6 AWG Wire, Side Mount, 58 mm Fuse Length, 22 mm Dia Fuse, -5 to 40 deg C Temperature Rating, For Use With: Cylindrical Fuse Systems, Ceramic/Plastic Material, 117 mm H x 108 mm W x 70 mm D Dimensions
Cylindrical fuse holders can be supplied with or without signal detectors. In the case of devices with signal detector, a small electronic device with LED is located behind an inspection window in the plug-in module. If the inserted fuse link is tripped, this is indicated by the LED flashing. The switching state of the fuse holder can be signaled over a laterally retrofitted auxiliary switch, which enables the integration of the fuses in the automation process.
Features
- IP20 degree of protection
- 90% humidity rating
- 100 kA breaking capacity
- Without blown fuse indicator
Specifications
GTIN: 00754554782164
UNSPSC: 39121626
Country of Origin: Germany
| Fuse Length | 58 mm |
|---|---|
| Wire Size | 10 to 6 AWG |
| Suitable For Use With | Cylindrical Fuse Systems |
| Number of Poles | 2 |
| Voltage Rating | 690 V AC |
| Weight | 6.9 lbs |
| Dimensions | 117 mm H x 108 mm W x 70 mm D |
| Mounting Type | Side |
| Series | 3NW72 |
| Material | Ceramic/Plastic |
| Amperage Rating | 100 A |
| Temperature Rating | -5 to 40 deg C |
| Fuse Diameter | 22 mm |
| BABA Compliant | No |
| Sold as | EACH |
