Description

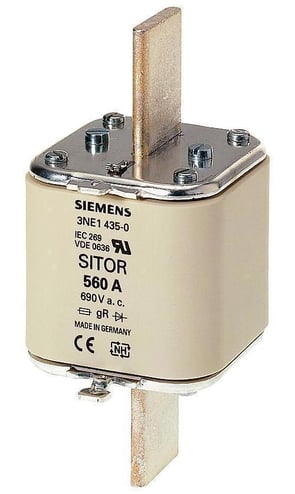

Sentron Fuse Link, 690 VAC, 630 A, Rated Breaking Capacity: 100 kA, -20 to 50 deg C Temperature Rating, For Use With: SITOR Semiconductor Fuse System, 151 mm L x 82.1 mm W x 70 mm D Dimensions
SITOR semiconductor fuses in LV HRC design can also be used, although it must be noted that, compared to cable and line protection fuses, these get much hotter during operation. For this reason, the fuse must be operated below the rated current In of the device (derating) when installed in a closed switching device.
Features
- Class gS, Size NH3
- Front indicator
Specifications
GTIN: 00662643084283
UNSPSC: 39121626
Country of Origin: Germany
| Voltage Rating | 690 VAC |
|---|---|
| Weight | 0 |
| Rated Breaking Capacity | 100 kA |
| Temperature Rating | -20 to 50 deg C |
| BABA Compliant | No |
| Amperage Rating | 630 A |
| Dimensions | 151 mm L x 82.1 mm W x 70 mm D |
| Suitable For Use With | SITOR Semiconductor Fuse System |
| Sold as | EACH |
