Description

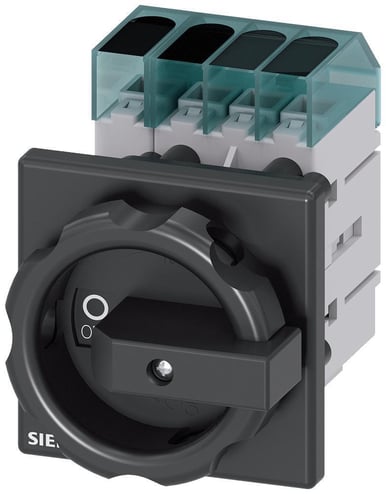

Sentron Load Switch Disconnector, Series: 3LD3, 600 VAC, 63 A, 25/30 hp, 50/60 Hz Frequency, 3P+N Pole, 5/6 kA Short Circuit, Rotary Operating Handle/Short Rotary Knob/Toggle Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, Front Plate/Fixed Mounting, Box Terminal, -25 to 55 deg C, 49 mm W x 114 mm D x 60 mm H, Black
The new 3LD3 main and EMERGENCY-STOP switch from 16 to 63 A for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnection from the line, they ensure safe activation of all the electrical equipment and therefore switch, for example, 3 ph motors, but also air-conditioning and ventilation systems. 3LD3 devices are also ideally suited for deploying control panels, particularly for applications in small machines (e.g. saws, compressors, pumps, cement mixers, drilling machines, milling and wood processing machines). The 3LD3 main and EMERGENCY-STOP switch from Siemens features a modular design and quick and easy installation of associated auxiliary switches, N and PE terminals or the 4th pole.
Features
- Basic switch with 22.5 mm central hole mounting
- 66 x 66 mm black toggle drive
- Without auxiliary switch
- 25 hp at 480 VAC/30 hp at 600 VAC
- 5 kA short time withstand current/6 kA conditional short circuit current
Specifications
GTIN: 00195125098701
UNSPSC: 39122233
Alternative Part Number: 16736452
Country of Origin: Germany
Voltage Rating | 600 VAC |
---|---|
BABA Compliant | No |
Amperage Rating | 63 A |
Temperature Rating | -25 to 55 deg C |
Frequency Rating | 50/60 Hz |
Color | Black |
Horsepower | 25/30 hp |
Terminal Type | Box |
Actuator Type | Rotary Operating Handle/Short Rotary Knob/Toggle |
Short Circuit Current Rating | 5/6 kA |
Dimensions | 49 mm W x 114 mm D x 60 mm H |
Mounting Type | Front Plate/Fixed |
Series | 3LD3 |
Number of Poles | 3P+N |
Enclosure Type | NEMA 1/3R/4X/12/IP65 |
Sold as | EACH |
