Description

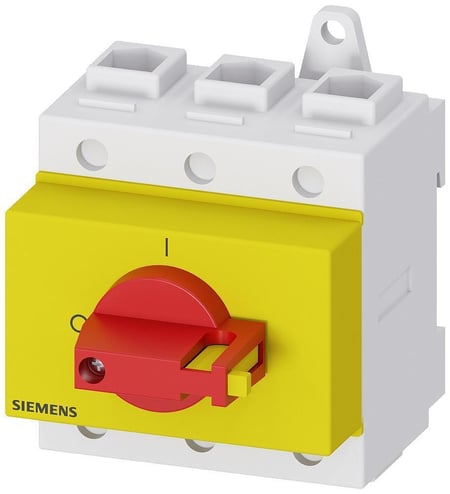

Sentron™ Sentron® Disconnect Switch, Emergency Switching Off, Series: 3LD, 690 VAC, 100 A, 50/60 Hz, 3 Pole, 2000 A Short Circuit Current Rating, Rotary Knob Actuator, IP40, 2-Hole Built-In Fixed DIN Rail Mount, Box Terminal, -20 to 120 deg F, 71 mm W x 97 mm D x 83 mm H, Red/Yellow
Features
- 37 kW at AC-23 A 400 VAC/30 kW at AC-23 A 690 VAC/30 kW at AC-3 400 VAC/22 kW at AC-3 690 VAC
Specifications
GTIN: 00754554732879
UNSPSC: 39122233
Alternative Part Number: 7569656
| Type | Emergency Switching Off |
|---|---|
| Terminal Type | Box |
| Number of Poles | 3 |
| Color | Red/Yellow |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 VAC |
| Actuator Type | Rotary Knob |
| Enclosure Type | IP40 |
| Dimensions | 71 mm W x 97 mm D x 83 mm H |
| Series | 3LD |
| Amperage Rating | 100 A |
| Temperature Rating | -20 to 120 deg F |
| BABA Compliant | No |
| Mounting Type | 2-Hole Built-In Fixed DIN Rail |
| Short Circuit Current Rating | 2000 A |
| Weight | 8.8 lbs |
| Sold as | EACH |
