Description

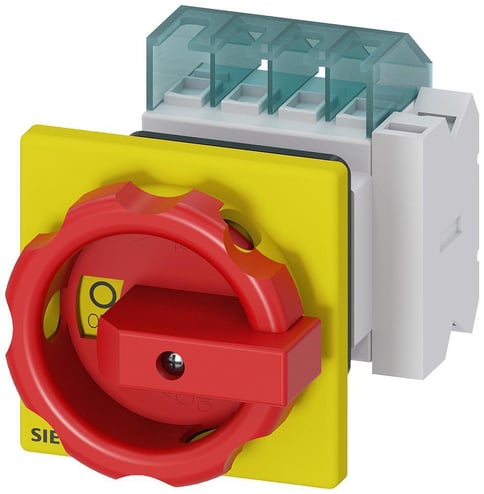

Sentron Switch Disconnector, Series: 3LD2, 600 VAC, 16 A, 7.5/10 hp, 50/60 Hz Frequency, 3P+N Pole, 5/50 kA Short Circuit, 1NO-1NC Contact Form, Rotary Operating Handle/Short Rotary Knob Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, Front/Fixed Mounting, Box Terminal, -25 to 55 deg C, 67 mm W x 116.5 mm D x 84 mm H, Red/Yellow
The 3LD switch disconnector portfolio is going to be expanded by the new 3LD2 enclosed repair and maintenance switches with EMC plate. The switches are perfectly suitable to be used between frequency converter and motor.
Features
- Switch specially designed and tested for use with frequency converters
- Type tested combination of Sinamics frequency converters and 3LD2
- Isolated PE from cable shield
- Padlockable in off and on
- Minimum leading auxiliary switch of 20 to 50 ms which shuts down frequency converter
- 22.5 mm central mounting of the handle
- 7.5 hp at 480 VAC/10 hp at 600 VAC
- 5 kA short time withstand current/50 kA conditional short circuit current
Specifications
GTIN: 00195125134126
UNSPSC: 39122233
Country of Origin: Germany
| Number of Poles | 3P+N |
|---|---|
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Actuator Type | Rotary Operating Handle/Short Rotary Knob |
| Width | 13 in |
| Enclosure Type | NEMA 1/3R/4X/12/IP65 |
| Mounting Type | Front/Fixed |
| Series | 3LD2 |
| Amperage Rating | 16 A |
| Contact Form | 1NO-1NC 1 Form A/1 Form B |
| Temperature Rating | -25 to 55 deg C |
| Horsepower | 7.5/10 hp |
| BABA Compliant | No |
| Dimensions | 67 mm W x 116.5 mm D x 84 mm H |
| Short Circuit Current Rating | 5/50 kA |
| Weight | 10.3 lbs |
| Color | Red/Yellow |
| Terminal Type | Box |
| Sold as | EACH |
