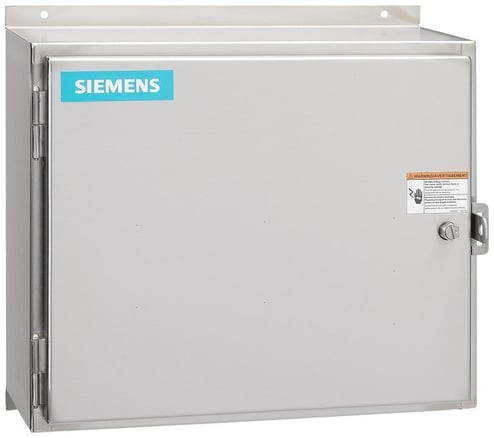

Siemens 30CUCB3201HJ 2-Speed Motor Starter, 24 VAC V Coil, NEMA 12 Enclosure


Description

Siemens Motor Starter, 2-Speed, 600 VAC, 18 A, 60 Hz Frequency, 8.6 W Wattage, 3 hp Motor, 24 VAC Coil, Setting: 0.75 to 3.4 A/3 to 12 A, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 12 Enclosure, 10000000 cycles Operating Cycles, -4 to 104 deg F Operating, 13 in W x 5 in D x 13 in H Dimensions

Specifications

GTIN: 00783087977372

UNSPSC: 39121521

Alternative Part Number: 10939816

Operating Temperature
-4 to 104 deg F
Auxiliary Contact Rating
10 A at 600 VAC, 5 A at 600 VDC
Frequency Rating
60 Hz
Voltage Rating
600 VAC
Enclosure Type
NEMA 12
Reset Type
Automatic/Manual/Remote
Overload Relay
Solid-State
Phase
3 ph
Connection Type
Screw Terminal
Motor Power
3 hp
Timing
19 to 29 ms On/10 to 24 ms Off
Wattage
8.6 W
Type
2-Speed
Weight
43 lbs
Dimensions
13 in W x 5 in D x 13 in H
Setting
0.75 to 3.4 A/3 to 12 A
Coil Voltage
24 VAC
Amperage Rating
18 A
Operating Cycles
10000000 cycles
Sold as
EACH
