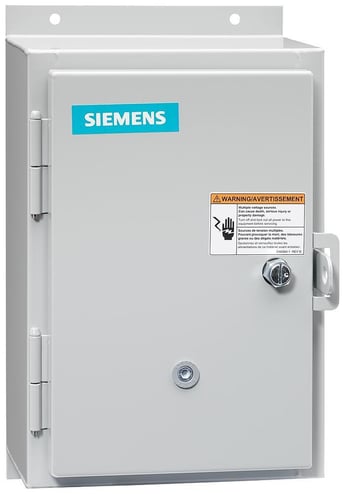

Siemens 22DUD320C Heavy Duty Full Voltage Reversing Non-Combination Motor Starter, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure


Description

Siemens Non-Combination Motor Starter, Heavy Duty Full Voltage Reversing, 600 VAC, 27 A, 60 Hz Frequency, 8.6 W Wattage, 3 hp at 200/208/220/230 VAC, 5 hp at 460/480/575/600 VAC Motor, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz Coil, 3 Pole, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Screw Terminal Connection, Solid-State Overload Relay, 5.5 to 22 A Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 12 Enclosure, 10000000 Cycles Operating Cycles, 104 deg F Operating, 13 in W x 5 in D x 13 in H Dimensions

Features

  • Field convertible to NEMA 3/3R/4
  • Suitable for 3-wire pilot control (NO auxiliary contact included)
  • NEMA controller size 1
  • Dust/drip-proof enclosure
  • Standard width enclosure

Specifications

GTIN: 00783087966215

UNSPSC: 39121521

Country of Origin: United States of America (the)

Type
Heavy Duty Full Voltage Reversing
Operating Temperature
104 deg F
Number of Poles
3
Auxiliary Contact Rating
10 A at 600 VAC, 5 A at 600 VDC
Wattage
8.6 W
Timing
19 to 29 ms On/10 to 24 ms Off
Frequency Rating
60 Hz
Voltage Rating
600 V AC
Weight
8 lbs
Width
2.1 in
Full Load Current
5.5 to 22 A
Enclosure Type
NEMA 12
Dimensions
13 in W x 5 in D x 13 in H
Motor Power
3 hp at 200/208/220/230 VAC, 5 hp at 460/480/575/600 VAC
Coil Voltage
190 to 220/380 to 440 V AC at 50 Hz, 220 to 240/440 to 480 V AC at 60 Hz
Connection Type
Screw Terminal
Phase
3
Reset Type
Automatic/Manual/Remote
Amperage Rating
27 A
Operating Cycles
10000000 Cycles
Overload Relay
Solid-State
BABA Compliant
No
Sold as
EACH
