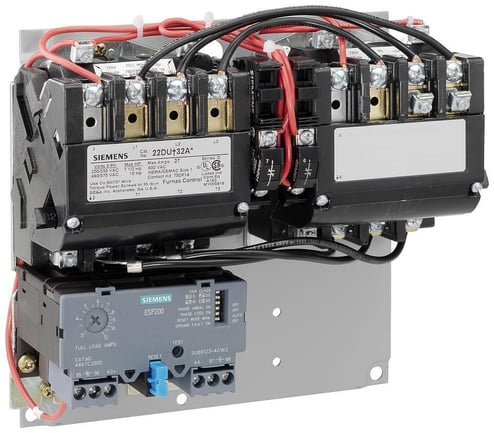

Siemens 22CUC32AF SZ 0 Class 22 Full Voltage Heavy Duty Non-Combination Reversing NEMA Motor Starter, 110120 VAC V Coil, 3 Poles, Open Enclosure
Siemens 22CUC32AF SZ 0 Class 22 Full Voltage Heavy Duty Non-Combination Reversing NEMA Motor Starter, 110120 VAC V Coil, 3 Poles, Open Enclosure
MPN 22CUC32AF
ASPN SIE22CUC32AF
UPC 783087964471
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
- 2 hp at 200/208 VAC, 220/230 VAC, 5 hp at 460/480 VAC, 575/600 VAC motor power
- Screw terminal lug line side/load side outgoing feeder connection
Specifications
GTIN: 00783087964471
UNSPSC: 39121521
Country of Origin: Mexico
| Type | SZ 0 Class 22 Full Voltage Heavy Duty Non-Combination Reversing |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 575/600 V AC |
| Weight | 0.4 lbs |
| Enclosure Type | Open |
| Dimensions | 7.69 in H x 10.5 in W x 3.92 in D |
| Motor Power | 2 hp, 5 hp |
| Coil Voltage | 110/120 V AC |
| Connection Type | Screw |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 3 to 12 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
