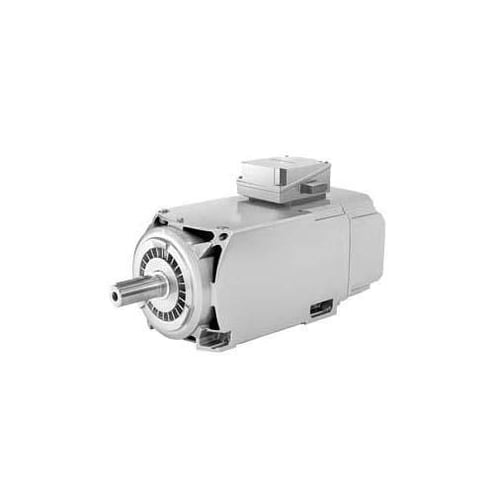

Siemens SIMOTICS M 1PH82261AF202BA2 Compact Squirrel-Cage Water Cooling Asynchronous Motor, IP55 Enclosure, 340390450 VAC, 50.5 Hz, 3 Phase, 150017502000 rpm Speed, IM B3 (IMB6, IMB7, IMB8, IMV6) Mount

Siemens SIMOTICS M Asynchronous Motor, Compact Squirrel-Cage Water Cooling, Series: 1PH8, 340/390/450 VAC, 290/295 A, 50.5 Hz, 3 ph, 1500/1750/2000 rpm, IP55 Enclosure, 225 mm H Shaft, 912 N-m Torque, IM B3 (IMB6, IMB7, IMB8, IMV6) Mount, 104 deg F, Insulation Class: Class H, 39.96 in L x 17.87 in W x 22.91 in H

SIMOTICS M-1PH8 motors have been especially designed for use as main drives in production machines and machine tools. These motors are available as asynchronous and synchronous versions. Based on a flexible modular kit system, the suitable SIMOTICS M-1PH8 motor can be found for nearly all drive tasks. For applications where - in addition to the higher drive power - the primary focus is on precise, smooth running characteristics and precise controllability of the axes. Further, you can operate them together with SINAMICS G120 converters which, when compared to standard main motors, extends the applications that they can realize as a result of the wider speed range. This allows them to address new, more compact machine concepts.
