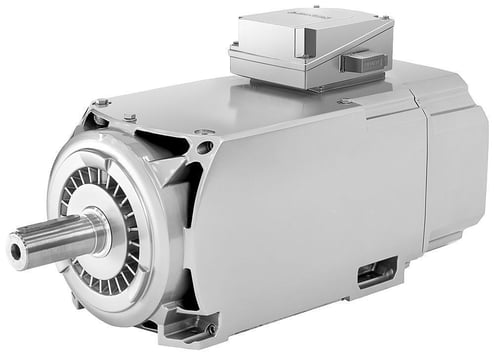

Siemens SIMOTICS 1PH81861JF102FA1 Compact Forced Ventilation Induction Motor With Incremental Encoder, Application Type: Asynchronous Motor, IP55 Enclosure, 99.24 hp, 113.99 hp, 126.06 hp, 330385445 VAC, 50.658.967.2 Hz, 3 Phase, IM B3 Mount

Siemens SIMOTICS Induction Motor, Compact Forced Ventilation, Series: 1PH818, Asynchronous Motor Application, 99.24 hp, 113.99 hp, 126.06 hp, 330/385/445 VAC, 160/164/166 A, 50.6/58.9/67.2 Hz Frequency, 3 ph, 1500/1750/2000 rpm Speed, IP55 Enclosure, 65 mm Dia x 180 mm H Shaft, 471/464/449 N-m Torque, IM B3 Mounting, 104 deg F, Insulation Class: Class H

The 1PH8 motor series is a new motor generation for universal implementation in plants and machines that have been developed with motion control applications. The motors are available as an asynchronous variant as well as a compact synchronous variant with either forced ventilation or water cooling, based on a flexible building block principle. Comprehensive function expansions such as different bearing concepts expand the application range. In comparison to the freely selectable performance of vector and servo control with the SINAMICS S120 drive system, it is possible to select between asynchronous or synchronous variants in the case of the 1PH8 motor series. This flexible interoperation of converter and motor makes it even easier to master extreme duty cycles, short control rise times and high precision in terms of speed, torque and positioning. Because the 1PH8 motors are often used as the largest and central drive in the machine, they are known as main motors. When developing the new 1PH8 motor series, we took special care to ensure maximum compatibility with the SINAMICS S120 drive system. For example, the specially harmonized power components, electronic rating plates and the ability to integrate the motors via the DRIVE-CLiQ system interface ensure quick and easy commissioning as well as problem free operation.
