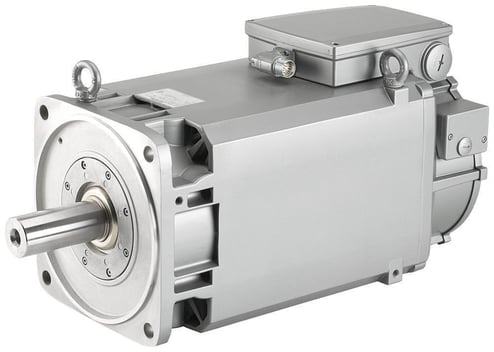

Siemens SIMOTICS M 1PH81312FL022CF1 Compact Forced Ventilated AC Motor With Extremely High Power Density, IP55 Enclosure, 33-12 hp, 37.1 hp, 39.6 hp, 400480 VAC, 83.393.3100 Hz, 3 Phase, 250028003000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SIMOTICS M AC Motor, Compact Forced Ventilated, Series: 1PH8, Crane Motor Application, Permanent Magnet Synchronous, Main Spindle Drive Motor Special Features, 33-1/2 hp, 37.1 hp, 39.6 hp, 400/480 VAC, 43/44 A, 83.3/93.3/100 Hz Frequency, 3 ph, 2500/2800/3000 rpm Speed, IP55 Enclosure, 48 mm Dia x 132 mm H Shaft, 94/95/96 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class H, 21.61 in L x 10.24 in W x 12.42 in H Dimensions

The simotics M-1PH8 Series is the latest motor generation for universal use with motion control applications. The wide power range is aimed at use as a central machine drive (as what is known as a "main motor") for various applications. The motors are available as an asynchronous variant as well as a compact synchronous variant with either forced ventilation or water cooling, based on a flexible building block principle. The flexible configuration such as storage or electrical connection technology allows you to adapt the motors to the requirements of almost any industrial application.

Features

  • With 22-bit single turn + 12-bit multi-turn AM22DQ absolute encoder, DRIVE-CLiQ interface
  • With feather key shaft extension, half key balancing
  • Standard with location bearing, S/A vibration severity grade according to Siemens/EN 60034-14, R shaft and flange accuracy grade
  • Top power connector, left cable entry, DE signal connection by looking at de
  • Low space requirements thanks to high power density
  • Performance capability thanks to wide rotational speed setting ranges
  • High degree of structural flexibility due to the choice of asynchronous or synchronous design, forced ventilation or water cooling, mechanical designs
  • Minimized maintenance costs thanks to high bearing service lives
  • Precise motion control thanks to high rotational accuracy, even at the lowest speeds
  • Maximum thermal utilization over the complete speed range
  • Quiet operation as a result of low sound pressure level
  • Optimized for the SINAMICS S120 drive system
  • 33-1/2 hp, 96 N-m, 44 A at 400 VAC smart/basic line module
  • 37.1 hp, 95 N-m, 44 A at 400 VAC active line module
  • 39.6 hp, 94 N-m, 43 A at 480 VAC smart/basic/active line module
  • Without holding brake

Specifications

GTIN: 00887621374020

UNSPSC: 39122003

Alternative Part Number: 12173714

Country of Origin: Germany

Speed
2500/2800/3000 rpm
Insulation Class
Class H
Enclosure Type
IP55
Mounting Type
IM B5/IM V1/IM V3
Series
1PH8
Phase
3
Amperage Rating
43/44 A
Temperature Rating
104 deg F
BABA Compliant
No
Special Features
Permanent Magnet Synchronous, Main Spindle Drive Motor
Dimensions
21.61 in L x 10.24 in W x 12.42 in H
Shaft Size
48 mm Dia x 132 mm H
Width
3.5 in
Voltage Rating
400/480 VAC
Frequency Rating
83.3/93.3/100 Hz
Torque Rating
94/95/96 N-m
Application Type
Crane Motor
Type
Compact Forced Ventilated
Horsepower
33-1/2 hp, 37.1 hp, 39.6 hp
Sold as
EACH
