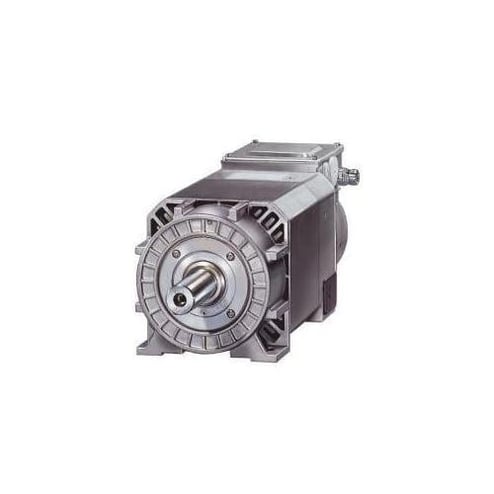

Siemens SINAMICS S 1PH71337DF000DK3 Compact Forced Ventilated Cooling Induction Motor, IP54IP55 Enclosure, 20.1 hp, 23-12 hp, 26.8 hp, 400480 VAC, 51.359.768 Hz, 3 Phase, 133 Frame, 150017502000 rpm Speed, IM B3IM V5IM V6 Mount


Description

Siemens SINAMICS S Induction Motor, Compact Forced Ventilated Cooling, Series: 1PH7, Asynchronous Special Features, 20.1 hp, 23-1/2 hp, 26.8 hp, 400/480 VAC, 34 A, 51.3/59.7/68 Hz Frequency, 3 ph, 1500/1750/2000 rpm Speed, IP54/IP55 Enclosure, 133 Frame, 42 mm Dia x 132 mm H Shaft, Deep Groove Ball Bearing, 96 N-m Torque, IM B3/IM V5/IM V6 Mounting, -15 to 40 deg C, Insulation Class: Class F, 10.24 in W Dimensions

The 1PH7 3-phase motors are compact, force ventilated squirrel cage induction motors with degree of protection IP55. The motors are ventilated, as standard, using a mounted separately driven fan unit. The motor can be ordered either with the air flow from the motor drive shaft end (DE) to the motor non-drive shaft end (NDE) - or vice versa. They have been designed specifically for use in conjunction with converters. Depending on the control requirements, the appropriate encoder systems are available for the motors. These encoders are used to sense the motor speed and indirect position.

Features

  • With 3-phase 400/480 VAC 50/60 Hz external fan unit, metric cable entry in terminal box
  • With 22-bit incremental encoder with commutation position, DRIVE-CLiQ interface
  • Cable entry direction top of the terminal box from right
  • Without holding brake
  • Coupling and belt drive, SR vibration severity grade, R shaft and flange accuracy
  • With plain shaft extension, NDE to de direction of air flow
  • Anthracite, standard paint finish
  • 1500 rpm, 20.1 hp, 96 N-m, 51.3 Hz, 34 A at 400 VAC servo control
  • 1750 rpm, 23.5 hp, 96 N-m, 59.7 Hz, 34 A at 400 VAC vector control
  • 2000 rpm, 26.8 hp, 96 N-m, 68 Hz, 34 A at 480 VAC servo/vector control
  • High degree of protection
  • Wide speed control ranges
  • Speed down to zero without reducing the torque
  • Robustness
  • Essentially maintenance-free
  • High cantilever force loading
  • High rotational accuracy, even at the lowest speeds
  • Integrated encoder system to sense the motor speed, connected using a connector or DRIVE-CLiQ
  • Terminal box to connect-up the power cable
  • Motor temperature monitoring with KTY 84

Specifications

GTIN: 00804766350597

UNSPSC: 26101114

Country of Origin: Germany

Voltage Rating
400/480 VAC
Insulation Class
Class F
Enclosure Type
IP54/IP55
Bearing Type
Deep Groove Ball
Phase
3
Special Features
Asynchronous
Amperage Rating
34 A
BABA Compliant
No
Horsepower
20.1 hp, 23-1/2 hp, 26.8 hp
Temperature Rating
-15 to 40 deg C
Series
1PH7
Mounting Type
IM B3/IM V5/IM V6
Dimensions
10.24 in W
Speed
1500/1750/2000 rpm
Shaft Size
42 mm Dia x 132 mm H
Frequency Rating
51.3/59.7/68 Hz
Type
Compact Forced Ventilated Cooling
Frame
133
Torque Rating
96 N-m
Sold as
EACH
