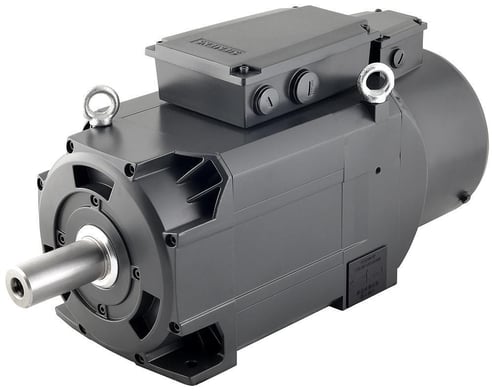

Siemens SIMOTICS M 1PH11051LD101GA0 Compact Forced Ventilated Cooling Induction Motor, IP54 Enclosure, 380 VAC, 3 Phase, 1000 rpm Speed, IM B3/IM V5 Foot Mount


Description

Siemens SIMOTICS M Induction Motor, Compact Forced Ventilated Cooling, Series: 1PH1, Asynchronous, Main Spindle Motor, Squirrel Cage Rotor Special Features, 380 VAC, 18.8 A, 3 ph, 1000 rpm Speed, IP54 Enclosure, 38 mm Dia x 100 mm H Shaft, 53 N-m Torque, IM B3/IM V5 Foot Mounting, -15 to 40 deg C, Insulation Class: Class F, 10.18 in H x 7.83 in W Dimensions

1PH1 main spindle motors have been especially designed for use as main drives in machine tools. These motors are available as asynchronous version with forced fan cooling. Together with the SINAMICS V70 spindle drive, a dynamic and powerful main drive system with high performance is created.

Features

  • With incremental encoder TTL 2500 S/R
  • With feather key shaft, full key balancing
  • High productivity
  • Better cutting performance
  • Compact design
  • Easy commissioning together with drive
  • Easy service
  • Robust, cost optimized design
  • Two times overload capability for high dynamic response

Specifications

GTIN: 00804766479151

UNSPSC: 39122001

Country of Origin: China

Width
0 in
Shaft Size
38 mm Dia x 100 mm H
Insulation Class
Class F
Phase
3
BABA Compliant
No
Series
1PH1
Dimensions
10.18 in H x 7.83 in W
Enclosure Type
IP54
Speed
1000 rpm
Weight
593 lbs
Voltage Rating
380 VAC
Torque Rating
53 N-m
Type
Compact Forced Ventilated Cooling
Special Features
Asynchronous, Main Spindle Motor, Squirrel Cage Rotor
Temperature Rating
-15 to 40 deg C
Amperage Rating
18.8 A
Mounting Type
IM B3/IM V5 Foot
Sold as
EACH
