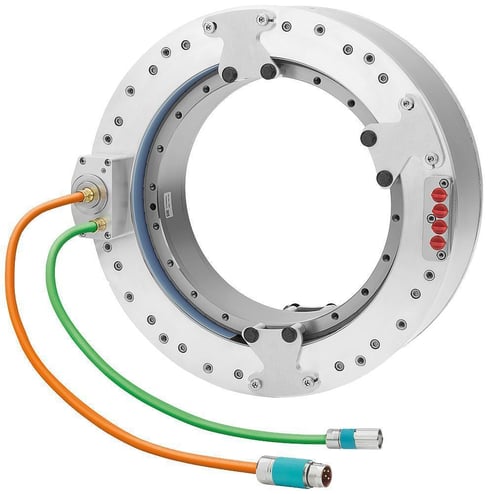

Siemens SIMOTICS T 1FW62300WB205GD3 Built-In Water Cooling Torque Motor, IP23IP54 Enclosure, 3 ph Phase, 56 rpm Speed

Siemens SIMOTICS T Torque Motor, Built-In Water Cooling, Series: 1FW6, Synchronous Permanent Magnet AC Motors Special Features, 100 A, 3 ph, 56 rpm, IP23/IP54 Enclosure, 5260 N-m Torque, 95 deg F, Insulation Class: Class F, 576 mm Dia x 260 mm L

Built-in torque motors are liquid-cooled resp. self-cooled high-pole permanent excited 3 ph synchronous motors with hollow-shaft rotor. The motors are supplied as built-in components. For a complete drive unit, a bearing and an encoder system are required additionally. For SIMOTICS T-1FW6 built-in torque motors, stator and rotor are supplied as components and are directly integrated in the machine itself. They are available with jacket as well as with integrated cooling. Further, the motors operate without any mechanical transmission elements - e.g. coupling and gearbox - and require significantly less space than conventional drives. The compact design and low number of installed parts reduce the number of interfaces, maintenance costs and stock inventory costs - thus minimizing machine failures.
