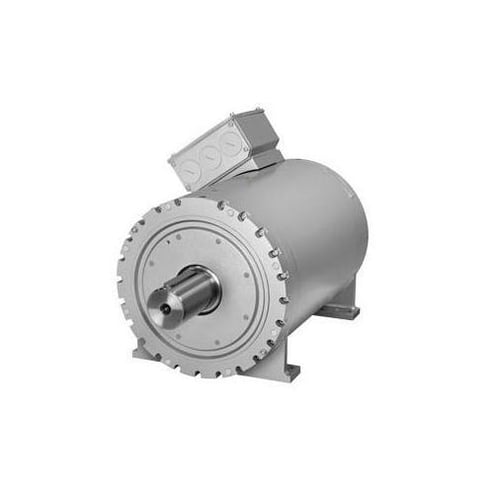

Siemens SIMOTICS T 1FW32811AG736AA0 Complete Water Cooling Torque Motor, IP54 Enclosure, 3 Phase, 250 rpm Speed, IM B35 Mount


Description

Siemens SIMOTICS T Torque Motor, Complete Water Cooling, Series: 1FW3, Permanent Magnet Synchronous Special Features, 3 ph, 250 rpm Speed, IP54 Enclosure, 281 mm H Shaft, Roller Bearing, 2400 N-m Torque, IM B35 Mounting, 25 deg C, Insulation Class: Class F, 555 mm Dia Dimensions

1FW3 complete torque motors are liquid cooled, high pole (slow running) permanent magnet synchronous motors with hollow shaft rotor. The operating characteristics are comparable to those of regular synchronous motors. 1FW3 complete torque motors are supplied as fully assembled, complete units. The range includes 3 outer diameters with various shaft lengths. For shaft heights 150 and 200, the stator and rotor have a flange with centering edges and tapped holes at the drive end according to type of construction IM B14 that allow them to be integrated into a machine. For shaft height 280, the flange with centering edge and through holes is designed in accordance with type of construction IM B35. 1FW3 torque motors can be combined with the SINAMICS S120 drive system to create a powerful, high performance system. The integrated encoder systems for speed and position control can be selected according to the application.

Features

  • With sin/cos 1 Vpp encoder, without DRIVE-CLiQ interface
  • Encoder mounting via toothed belts
  • Cable outlet left terminal box
  • High torque for a compact design and low envelope dimensions
  • High overload capability
  • No elasticity in the drive train
  • No torsional play
  • High degree of availability, since there are no mechanical transmission elements in the drive train that are subject to wear
  • Low moment of inertia
  • Direct coupling to the machine using flanges
  • Flexible mounting concept as a result of the hollow shaft design
  • Energy saving by reducing mechanical losses

Specifications

GTIN: 00887621160012

UNSPSC: 26101109

Alternative Part Number: 13814892

Country of Origin: Germany

Phase
3
BABA Compliant
No
Insulation Class
Class F
Type
Complete Water Cooling
Mounting Type
IM B35
Series
1FW3
Bearing Type
Roller
Special Features
Permanent Magnet Synchronous
Temperature Rating
25 deg C
Shaft Size
281 mm H
Torque Rating
2400 N-m
Enclosure Type
IP54
Dimensions
555 mm Dia
Weight
3 lbs
Speed
250 rpm
Sold as
EACH
