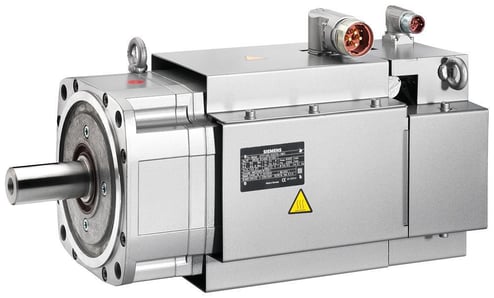

Siemens SIMOTICS S 1FT70877SF711MG3 Forced Ventilated High Dynamic Servo Motor, 13.9 hp, 29 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount

Siemens SIMOTICS S Servo Motor, Forced Ventilated High Dynamic, Series: 1FT7, Permanent Magnet Synchronous Special Features, 13.9 hp, 29 A, 3000 rpm Speed, IP64 Enclosure, 32 mm Dia x 80 mm H Shaft, 33 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 155 mm W Dimensions

The SIMOTICS S-1FT7 servomotors are permanent magnet synchronous motors with very compact dimensions and an attractive design. The S-1FT7 motors fulfill the highest standards in terms of dynamic performance, speed setting range, shaft and flange accuracy. They are equipped with state of the art encoder technology and optimized for operation on our fully digital drive and control systems. Natural cooling, forced ventilation, or water cooling are available as cooling methods. With the natural cooling method, heat is dissipated through the surface of the motor. With the forced ventilation method, heat is forced out by means of built-on fans. The water cooling method achieves maximum cooling, thereby ensuring that the motor can be operated at maximum output.
