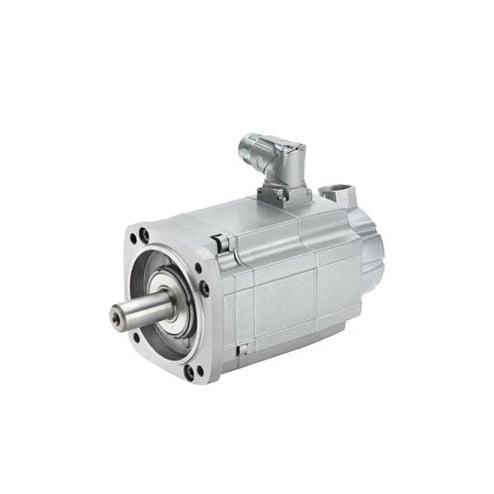

Siemens SIMOTICS S 1FT70865AF711NB4 Compact Natural Cooling AC Servo Motor, 7.58 hp, 11 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount

Siemens SIMOTICS S AC Servo Motor, Compact Natural Cooling, Series: 1FT7, Synchronous Permanent Magnet AC Motors Special Features, 7.58 hp, 11 A, 3000 rpm Speed, IP65 Enclosure, 24 mm Dia x 50 mm L Shaft, 28 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 155 mm W Dimensions

Simotics S-1FT7 motors, forced ventilation, water cooling and natural cooling the Simotics S-1FT7 servomotors are permanent magnet synchronous motors with very compact dimensions and an attractive design. The S-1FT7 motors fulfil the highest standards in terms of dynamic performance, speed setting range, shaft and flange accuracy. They are equipped with state of the art encoder technology and optimized for operation on our fully digital drive and control systems. Natural cooling, forced ventilation or water cooling are available as cooling methods. With the natural cooling method, heat is dissipated through the surface of the motor. With the forced ventilation method, heat is forced out by means of built-on fans. The water cooling method achieves maximum cooling, thereby ensuring that the motor can be operated at maximum output.
