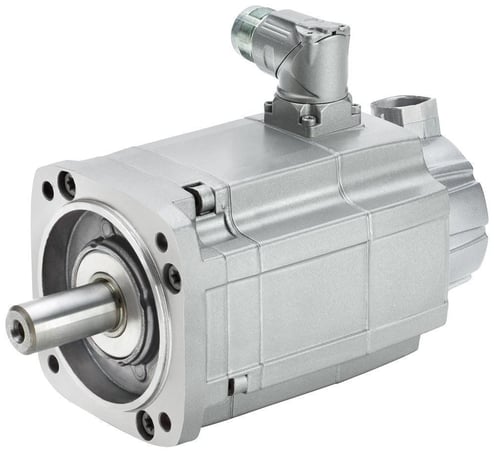

Siemens 1FT70685AF711FB0 10-Pole Compact Natural Cooling Standard AC Servomotor With Holding Brake, 4.59 hp, 6.7 A Rated8.3 A Static, 63 Frame, 3000 rpm Speed, Flange Mount

Siemens AC Servomotor, 10-Pole Compact Natural Cooling Standard, Series: 1FT7, Special Features: Synchronous AC Motors, 4.59 hp, 6.7 A Rated/8.3 A Static, 3000 rpm, IP64 Enclosure, 63 Frame, 24 mm Dia x 50 mm L Shaft, Ball Bearing, 10.9 N-m Rated/15 N-m Static, Flange Mount, 40 deg C, Insulation Class: Class F, ABS, 126 mm W

The 1FT7 synchronous motors are permanent magnet synchronous motors with very compact dimensions. Quick, easy mounting of the motors is possible due to the well proven cross-profile. The 1FT7 motors satisfy the highest demands in terms of dynamic response, speed setting range including field weakening, radial eccentricity and positioning accuracy. They are equipped with state-of-the-art encoder technology and are optimized for operation on our completely digitally designed drive and control systems. Natural cooling, forced ventilation or water cooling can be selected as cooling types. With natural cooling, heat is dissipated through the surface of the motor to the ambient air, whereas with forced ventilation, a mounted fan produces a continuous airflow that dissipates the heat loss. Maximum cooling and therefore maximum power ratings can be achieved by using water cooling.
