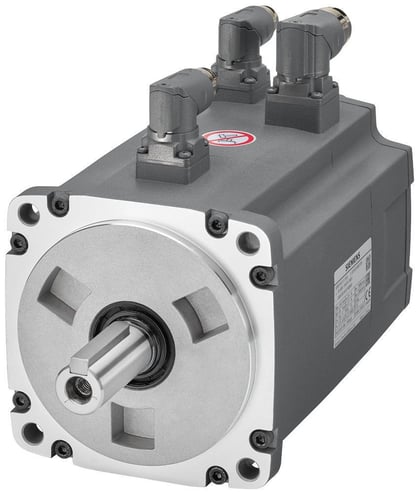

Siemens SIMOTICS S SINAMICS V90 1FL60921AC612LB1 1FL6 High Inertia Natural Cooling Smooth Operation Servo Motor, 4.76 hp


Description

Siemens SIMOTICS S SINAMICS V90 Servo Motor, High Inertia Natural Cooling Smooth Operation, Series: 1FL6, Permanent Magnet Synchronous Special Features, 4.76 hp, 400 VAC, 11 A, 2000 rpm Speed, IP65 Enclosure, 35 mm Dia x 90 mm H Shaft, 16.7 N-m Torque, IM B5/IM V1/IM V3 Mounting, 32 to 104 deg F, Insulation Class: Class B, 180 mm W Dimensions

The performance optimized, user friendly servo drive system comprises a SINAMICS V90 servo drive and a Simotics S-1FL6 servomotor. There are eight different servo drive frame sizes and seven motor shaft heights for operation on single and three phase line supplies with power ratings ranging from 0.05 to 7 kW, to realize a wide range of applications, with the focus on dynamic motion and processing for example positioning, transporting and winding. In addition to operation in the TIA portal V14 with the new SIMATIC 1500 T-CPU advanced controller, the servo drive system is also suitable for use with the SIMATIC S7-1500 advanced controller and the SIMATIC S7-1200 basic controller.

Features

  • With 20 bit single turn, 12 bit multi-turn absolute encoder
  • With feather key shaft extension, holding brake
  • Cost effective many integrated functions to reduce machine costs
  • The drive has various integrated control modes to address a wide range of applications
  • This solution offers wide ranging functions with reduced complexity
  • Point to point positioning possible using a PLC without positioning functionality
  • Most applications can be realized without an additional braking resistor
  • Holding brake can be connected without requiring an external relay (only for SINAMICS V90, 400 V version)
  • Easy to use simple tuning and quick commissioning
  • Simply plug and play, no in depth servo know how required
  • SINAMICS V-ASSISTANT makes commissioning and diagnostics quick and easy
  • Standard interface makes it easy to connect the drive with PLCs and motion controller
  • Efficient commissioning of machine Series

Specifications

GTIN: 00804766790744

UNSPSC: 26101109

Country of Origin: China

Type
High Inertia Natural Cooling Smooth Operation
Torque Rating
16.7 N-m
Voltage Rating
400 V AC
Weight
0
Shaft Size
35 mm Dia x 90 mm H
Speed
2000 rpm
Insulation Class
Class B
Enclosure Type
IP65
Dimensions
180 mm W
Mounting Type
IM B5/IM V1/IM V3
Series
1FL6
Special Features
Permanent Magnet Synchronous
Amperage Rating
11 A
Temperature Rating
32 to 104 deg F
Horsepower
4.76 hp
BABA Compliant
No
Sold as
EACH
