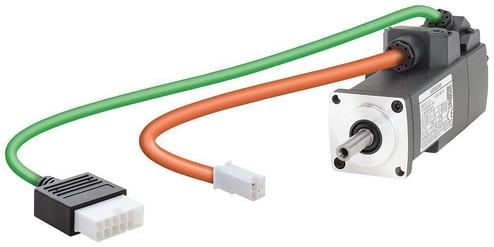

Siemens SINUMERIK SIMOTICS S 1FL60242AF211AG1 Low Inertia High Dynamic Natural Cooling Servo Motor, 0.14 hp, 230 VAC, 1.2 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SINUMERIK SIMOTICS S Servo Motor, Low Inertia High Dynamic Natural Cooling, Series: 1FL6, Permanent Magnet Synchronous Special Features, 0.14 hp, 230 VAC, 1.2 A, 3000 rpm Speed, IP65 Enclosure, 8 mm Dia x 20 mm H Shaft, 0.32 N-m Torque, IM B5/IM V1/IM V3 Mounting, 0 to 40 deg C, Insulation Class: Class B, 40 mm W Dimensions

SIMOTICS S-1FL6 servomotors are permanent magnet synchronous motors and designed for operation without external cooling. The heat is dissipated through the motor surface. The motors have a 300 % overload capability and can be combined with the SINAMICS V90 servo drives to create a powerful servo system with high functionality. Incremental or absolute encoders can be selected depending on the application.

Features

  • With S/R TTL encoder
  • With plain shaft, without holding brake
  • High performance magnet material
  • Rugged design with IP65 degree of protection for complete motor including connectors
  • Smooth running quality thanks to low torque ripple
  • High rated speed for some variants
  • High acceleration due to the 300% overload capacity
  • Rotatable and fast release connectors
  • Maximum flexibility due to variants with incremental encoder/20 bit absolute encoder, with/without brake and plain shaft/feather key, half key balancing

Specifications

GTIN: 00804766483080

UNSPSC: 26101109

Country of Origin: China

Type
Low Inertia High Dynamic Natural Cooling
Torque Rating
0.32 N-m
Voltage Rating
230 V AC
Weight
47.8 lbs
Width
7.4 in
Shaft Size
8 mm Dia x 20 mm H
Speed
3000 rpm
Insulation Class
Class B
Enclosure Type
IP65
Dimensions
40 mm W
Mounting Type
IM B5/IM V1/IM V3
Series
1FL6
Special Features
Permanent Magnet Synchronous
Amperage Rating
1.2 A
Temperature Rating
0 to 40 deg C
Horsepower
0.14 hp
BABA Compliant
No
Sold as
EACH
