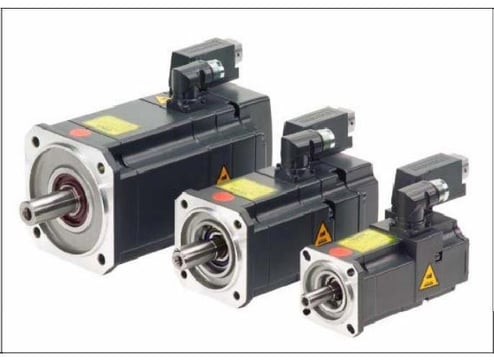

Siemens SIMOTICS 1FK70447AH711FA3 S-1FK7 3-Phase 6-Pole High Dynamic Natural Cooling AC Servo Motor, 1.89 hp, 400 to 480 VAC, 4.9 A, H Frame, 4500 rpm Speed, IM B5 Flange Mount
Siemens SIMOTICS 1FK70447AH711FA3 S-1FK7 3-Phase 6-Pole High Dynamic Natural Cooling AC Servo Motor, 1.89 hp, 400 to 480 VAC, 4.9 A, H Frame, 4500 rpm Speed, IM B5 Flange Mount
MPN 1FK70447AH711FA3
ASPN SIE1FK70447AH711FA3
UPC 40892654776
Description
Features
- High degree of efficiency and triple overload capability
- Shock and vibration-resistant due to mechanically isolated encoder connection
- Easy to assemble and service due to rotatable connector with quick-release fastener and exchangeable encoder
- Digital DRIVE-CLiQ interface with electronic rating plate for optimum connection to SINAMICS S120
- Cooling methods-natural cooling and forced ventilation
- The sprinter in the ramp-up time
- Very high acceleration capability due to low rotor moment of inertia
- For highly dynamic applications with low load moment of inertia
- Without holding brake
- With absolute encoder EnDat 2048 Pulses/Revolution, DRIVE-CLiQ interface, fitted key and keyway shaft extension
Specifications
GTIN: 00040892654776
UNSPSC: 26101109
Country of Origin: Germany
| Type | 3-Phase 6-Pole High Dynamic Natural Cooling |
|---|---|
| Application Type | Synchronous Permanent Magnet AC Motors |
| Torque Rating | 4 N-m Static/3 N-m Rated |
| Rotation | 270 deg CW |
| Voltage Rating | 400 to 480 V AC |
| Weight | 12 lbs |
| Width | 3 in |
| Shaft Size | 48 mm H |
| Speed | 4500 rpm |
| Insulation Class | Class F |
| Enclosure Type | IP64 |
| Mounting Type | IM B5 |
| Series | S-1FK7 |
| Bearing Type | Ball |
| Amperage Rating | 4.9 A |
| Temperature Rating | 5 to 104 deg F |
| Horsepower | 1.89 hp |
| Frame | H |
| BABA Compliant | No |
| Sold as | EACH |
