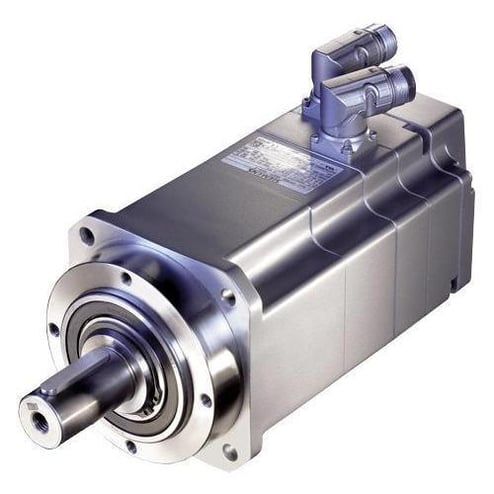

Siemens SIMOTICS S 1FK70225AK211UA5 6-Pole CompactHigh Dynamic Natural Cooling AC Servomotor, 0.51 hp, 230 VAC, 1.4 A Rated1.8 A Static, 28 Frame, 6000 rpm Speed, Flange Mount

Siemens SIMOTICS S AC Servomotor, 6-Pole Compact/High Dynamic Natural Cooling, Series: 1FK7, Special Features: Synchronous AC Motors, 0.51 hp, 230 VAC, 1.4 A Rated/1.8 A Static, 6000 rpm, IP65 Enclosure, 28 Frame, 9 mm Dia x 20 mm L Shaft, Ball Bearing, 0.6 N-m Rated/0.85 N-m Static, Flange Mount, -15 to 40 deg C, Insulation Class: Class F, 55 mm W

1FK7 motors are extremely compact permanent magnet synchronous motors. The available options, gear units and encoders, together with the expanded product range, mean that the 1FK7 motors can be optimally adapted to any application. They therefore also satisfy the permanently increasing demands of state-of-the-art machine generations. 1FK7 motors can be combined with the SINAMICS S120 drive system to create a powerful system with high functionality. The integrated encoder systems for speed and position control can be selected depending on the application. The motors are designed for operation without external cooling and the heat is dissipated through the motor surface. 1FK7 motors have a high overload capability.
