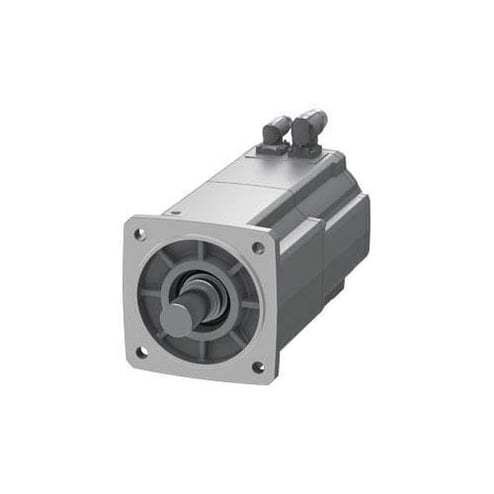

Siemens SIMOTICS S 1FK22084AC100MA0 Compact Servo Motor With Holding Brake and Shaft Sealing Ring, 200 to 240 V, 10.9 A, 1000 rpm Speed, IMB 5 Mount


Description

Siemens SIMOTICS S Servo Motor, Compact, Series: 1FK2, Synchronous Permanent Magnet AC Motors Special Features, 200 to 240 V, 10.9 A, 1000 rpm Speed, IP64 Enclosure, 1.26 in Dia x 2.28 in L Shaft, 22 N-m Torque, IMB 5 Mounting, 5 to 104 deg F, Insulation Class: Class B, 10.08 in OAL

The SIMOTICS S-1FK2 servomotors are compact and highly dynamic synchronous motors for a wide range of uses in an industrial environment. They are characterized by high power density, degree of protection and overload capability.

Features

  • Short adjustment and positioning times
  • Quick and precise compensation of disturbances
  • Stable closed-loop control with high dynamic response
  • Rapid control cycle, high pulse frequency
  • Complex rule algorithms
  • High resolution optical encoder with fast scanning
  • Low moment of inertia of the motors
  • High overload capability
  • AM22DQC 22 bit + 12 bit multi-turn absolute encoder
  • With OCC interface and rotatable M23 connector

Specifications

GTIN: 00195125135581

UNSPSC: 26101109

Country of Origin: Germany

Type
Compact
Weight
13.5 lbs
Speed
1000 rpm
Enclosure Type
IP64
Dimensions
10.08 in OAL
Mounting Type
IMB 5
Temperature Rating
5 to 104 deg F
BABA Compliant
No
Amperage Rating
10.9 A
Special Features
Synchronous Permanent Magnet AC Motors
Series
1FK2
Insulation Class
Class B
Shaft Size
1.26 in Dia x 2.28 in L
Voltage Rating
200 to 240 V
Torque Rating
22 N-m
Sold as
EACH
