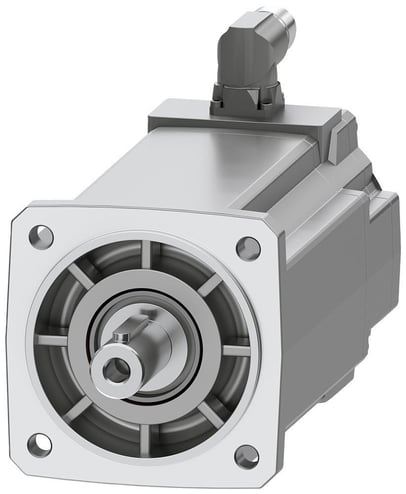

Siemens SIMOTICS S 1FK22054AF011MA0 1FK2 Compact Natural Cooling Servo Motor, 1.151.94 hp, 200 to 240380 to 480 VAC


Description

Siemens SIMOTICS S Servo Motor, Compact Natural Cooling, Series: 1FK2, Permanent Magnet Synchronous Special Features, 1.15/1.94 hp, 200 to 240/380 to 480 VAC, 4.35 A, 3000 rpm Speed, IP65 Enclosure, 19 mm Dia x 40 mm H Shaft, 6 N-m Torque, IM B5/IM V1/IM V3 Mounting, 5 to 104 deg F, Insulation Class: Class B/F, 95 mm W Dimensions

The Simotics S-1FK2 servo motors are compact and highly dynamic synchronous motors for a wide range of uses in an industrial environment. They are characterized by high power density, degree of protection and overload capability. The motors are designed for operation without external cooling and the heat is dissipated through the motor surface.

Features

  • With AM22DQC encoder, OCC interface
  • With shaft with feather key, without brake
  • The SIMOTICS S-1FK2 servomotors fully exploit their strengths in the system with the SINAMICS S210 converter
  • Short adjustment and positioning times
  • Quick and precise compensation of disturbances
  • Stable closed loop control with high dynamic response
  • This is achieved by rapid control cycle, high pulse frequency, complex rule algorithms, high resolution optical encoder with fast scanning, low moment of inertia of the motors, high overload capability
  • Precise, stable control with medium to high masses to be moved with medium moment of inertia

Specifications

GTIN: 00195125059764

UNSPSC: 26101109

Country of Origin: Germany

Type
Compact Natural Cooling
Torque Rating
6 N-m
Shaft Size
19 mm Dia x 40 mm H
Speed
3000 rpm
Insulation Class
Class B/F
Enclosure Type
IP65
Dimensions
95 mm W
Mounting Type
IM B5/IM V1/IM V3
Series
1FK2
Special Features
Permanent Magnet Synchronous
Amperage Rating
4.35 A
Temperature Rating
5 to 104 deg F
BABA Compliant
No
Horsepower
1.15/1.94 hp
Voltage Rating
200 to 240/380 to 480 V AC
Sold as
EACH
