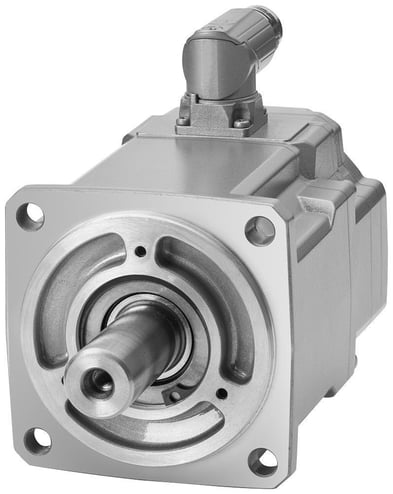

Siemens SIMOTICS S 1FK22046AF010MA0 Compact Natural Cooling AC Servo Motor, 0.671.34 hp, 200 to 240380 to 480 VAC, 3 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SIMOTICS S AC Servo Motor, Compact Natural Cooling, Series: 1FK2, Synchronous Permanent Magnet AC Motors Special Features, 0.67/1.34 hp, 200 to 240/380 to 480 VAC, 3 A, 3000 rpm Speed, IP65 Enclosure, 19 mm Dia x 40 mm H Shaft, 3.2 N-m Torque, IM B5/IM V1/IM V3 Mounting, 5 to 104 deg F, Insulation Class: Class B/F, 80 mm W Dimensions

The SIMOTICS S-1FK2 servomotors are compact and highly dynamic synchronous motors for a wide range of uses in an industrial environment. They are characterized by high power density, degree of protection and overload capability.

Features

  • Short adjustment and positioning times
  • Quick and precise compensation of disturbances
  • Stable closed loop control with high dynamic response
  • This is achieved by rapid control cycle, high pulse frequency, complex rule algorithms, high resolution optical encoder with fast scanning, low moment of inertia of the motors, high overload capability
  • Precise, stable control with medium to high masses to be moved with medium moment of inertia

Specifications

GTIN: 00195125168695

UNSPSC: 26101109

Country of Origin: Germany

Type
Compact Natural Cooling
Torque Rating
3.2 N-m
Voltage Rating
200 to 240/380 to 480 V AC
Weight
4.5 lbs
Shaft Size
19 mm Dia x 40 mm H
Speed
3000 rpm
Insulation Class
Class B/F
Enclosure Type
IP65
Dimensions
80 mm W
Mounting Type
IM B5/IM V1/IM V3
Series
1FK2
Special Features
Synchronous Permanent Magnet AC Motors
Amperage Rating
3 A
Temperature Rating
5 to 104 deg F
Horsepower
0.67/1.34 hp
BABA Compliant
No
Sold as
EACH
