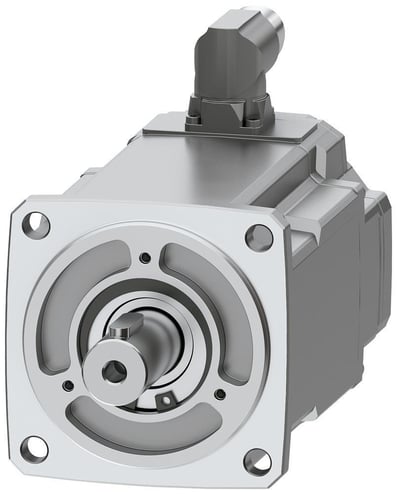

Siemens SIMOTICS S 1FK21045AK001SA0 High Dynamic Natural Cooling Servo Motor, 1.01 hp, 200 to 240 VAC, 4.4 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SIMOTICS S Servo Motor, High Dynamic Natural Cooling, Series: 1FK2, Permanent Magnet Synchronous Special Features, 1.01 hp, 200 to 240 VAC, 4.4 A, 3000 rpm Speed, IP64 Enclosure, 19 mm Dia x 40 mm H Shaft, 2.4 N-m Torque, IM B5/IM V1/IM V3 Mounting, 5 to 104 deg F, Insulation Class: Class B/F, 80 mm W Dimensions

The SIMOTICS S-1FK2 servomotors are compact and highly dynamic synchronous motors for a wide range of uses in an industrial environment. They are characterized by high power density, degree of protection and overload capability.

Features

  • With AS22DQC encoder
  • With shaft with feather key, without holding brake
  • The SIMOTICS S-1FK2 servomotors fully exploit their strengths in the system with the SINAMICS S210 converter
  • Short adjustment and positioning times
  • Quick and precise compensation of disturbances
  • Stable closed loop control with high dynamic response
  • This is achieved by rapid control cycle, high pulse frequency, complex rule algorithms, high resolution optical encoder with fast scanning, low moment of inertia of the motors, high overload capability
  • Highest dynamic response through low inertia for highly dynamic applications with low moved masses

Specifications

GTIN: 00804766728143

UNSPSC: 26101109

Country of Origin: Germany

Type
High Dynamic Natural Cooling
Torque Rating
2.4 N-m
Voltage Rating
200 to 240 V AC
Weight
447 lbs
Width
5.2 in
Shaft Size
19 mm Dia x 40 mm H
Speed
3000 rpm
Insulation Class
Class B/F
Enclosure Type
IP64
Dimensions
80 mm W
Mounting Type
IM B5/IM V1/IM V3
Special Features
Permanent Magnet Synchronous
Amperage Rating
4.4 A
Temperature Rating
5 to 104 deg F
Horsepower
1.01 hp
BABA Compliant
No
Series
1FK2
Sold as
EACH
