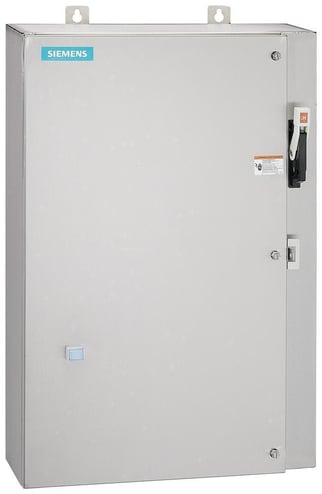

Siemens 18IUH92WE SZ 3-1/2 Class 18 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter With 125 A Circuit Breaker, 550 VAC, 550 to 600 VAC V Coil, 3 Poles, NEMA 4/4X Enclosure
Siemens 18IUH92WE SZ 3-1/2 Class 18 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter With 125 A Circuit Breaker, 550 VAC, 550 to 600 VAC V Coil, 3 Poles, NEMA 4/4X Enclosure
MPN 18IUH92WE
ASPN SIE18IUH92WE
UPC 662643823585
Description
Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 30 hp at 200/208 VAC, 40 hp at 220/230 VAC, 75 hp at 460/480 VAC, 75 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 550 to 600 VAC at 60 Hz, 550 VAC at 50 Hz coil voltage
Specifications
GTIN: 00662643823585
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | SZ 3-1/2 Class 18 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 575/600 VAC |
| Weight | 14.7 lbs |
| Setting | 50 to 200 A |
| Connection Type | Box Lug |
| Reset Type | Automatic/Manual/Remote |
| Material | 304 Stainless Steel |
| Operating Cycles | 5000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Coil Voltage | 550 VAC, 550 to 600 VAC |
| Motor Power | 30 hp, 40 hp, 75 hp |
| Dimensions | 36 in H x 24 in W x 8 in D |
| Enclosure Type | NEMA 4/4X |
| Sold as | EACH |
