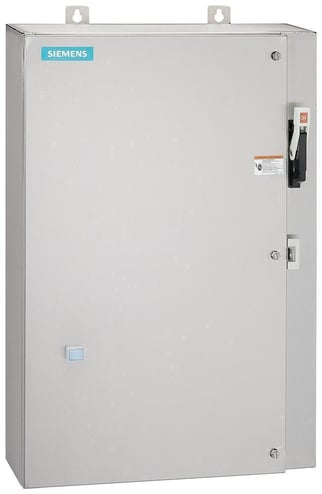

Siemens 17JUH92WA SZ 4 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter With 200 A, 600 V Non-Fusible Disconnect Switch, 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC V Coil, 3 Poles
Siemens 17JUH92WA SZ 4 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter With 200 A, 600 V Non-Fusible Disconnect Switch, 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC V Coil, 3 Poles
MPN 17JUH92WA
ASPN SIE17JUH92WA
UPC 662643816440
Description
Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 40 hp at 200/208 VAC, 50 hp at 220/230 VAC, 100 hp at 460/480 VAC, 100 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
Specifications
GTIN: 00662643816440
UNSPSC: 39121521
Alternative Part Number: 10994907
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 575/600 VAC |
| Reset Type | Automatic/Manual/Remote |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Material | 304 Stainless Steel |
| Coil Voltage | 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC |
| Dimensions | 36 in H x 24 in W x 8 in D |
| Enclosure Type | NEMA 4/4X |
| Setting | 50 to 200 A |
| Motor Power | 40 hp, 50 hp, 100 hp |
| Connection Type | Box Lug |
| Weight | 4 lbs |
| Type | SZ 4 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing |
| Operating Cycles | 5000000 Cycles |
| Sold as | EACH |
