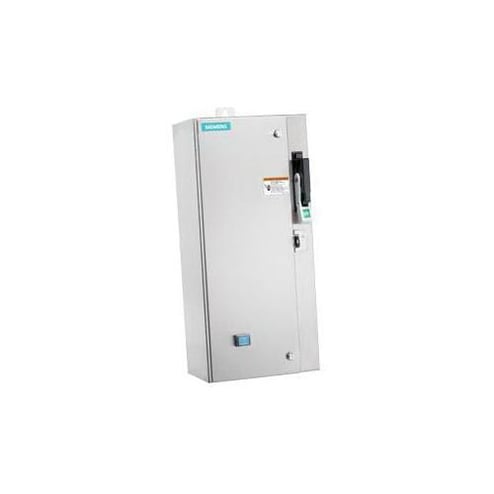

Siemens 17FUF92XF13 SZ 2 Class 17 Full Voltage Heavy Duty Non-Reversing Standard Width NEMA Combination Starter With 60 A, 600 V Fusible Disconnect, 110/120 VAC V Coil, 3 Poles, NEMA 4X Enclosure
Siemens 17FUF92XF13 SZ 2 Class 17 Full Voltage Heavy Duty Non-Reversing Standard Width NEMA Combination Starter With 60 A, 600 V Fusible Disconnect, 110/120 VAC V Coil, 3 Poles, NEMA 4X Enclosure
MPN 17FUF92XF13
ASPN SIE17FUF92XF13
UPC 40892656916
Description
Features
- Manufactured with cold forming TOX process
- Solid state overloads standard on sizes 5 to 8
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with class R fuses to 600 VAC or motor circuit protector to 480 VAC
- Visible blade disconnect
- Industrial type disconnect operating handle
- 25 hp at 460/480/575/600 VAC 3-phase motor power
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
- Box lug connection for supply voltage line side/load side outgoing feeder, screw type terminals connection for magnet coil/auxiliary contacts/overload relay for auxiliary contacts
Specifications
GTIN: 00040892656916
UNSPSC: 39121521
Alternative Part Number: 11130076
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Timing | 19 to 29 ms On, 10 to 24 ms Off |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 VAC |
| Width | 12 in |
| Setting | 13 to 52 A |
| Coil Voltage | 110/120 VAC |
| Connection Type | Box Lug/Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Amperage Rating | 45 A |
| Material | 316 Stainless Steel |
| Motor Power | 25 hp |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Enclosure Type | NEMA 4X |
| Weight | 16.3 lbs |
| Type | SZ 2 Class 17 Full Voltage Heavy Duty Non-Reversing Standard Width |
| Sold as | EACH |
