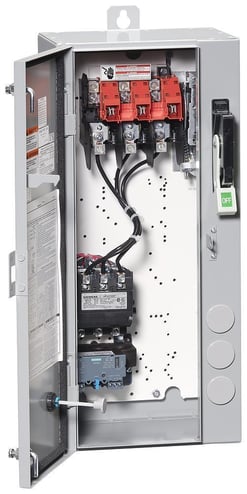

Siemens 17FUF92NG SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 60 A, 600 V Non-Fusible Disconnect Switch, 190 to 220 VAC, 220 to 240 VAC V Coil, 3 Poles, NEMA 12 Enclosure
Siemens 17FUF92NG SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 60 A, 600 V Non-Fusible Disconnect Switch, 190 to 220 VAC, 220 to 240 VAC V Coil, 3 Poles, NEMA 12 Enclosure
MPN 17FUF92NG
ASPN SIE17FUF92NG
UPC 662643810912
Description
Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 220 to 240 VAC at 60 Hz, 190 to 220 VAC at 50 Hz coil voltage
Specifications
GTIN: 00662643810912
UNSPSC: 39121521
Alternative Part Number: 10994354
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 575/600 VAC |
| Enclosure Type | NEMA 12 |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Motor Power | 10 hp, 15 hp, 25 hp |
| Coil Voltage | 190 to 220 VAC, 220 to 240 VAC |
| Connection Type | Box Lug |
| Reset Type | Automatic/Manual/Remote |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Setting | 13 to 52 A |
| Type | SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof |
| Sold as | EACH |
