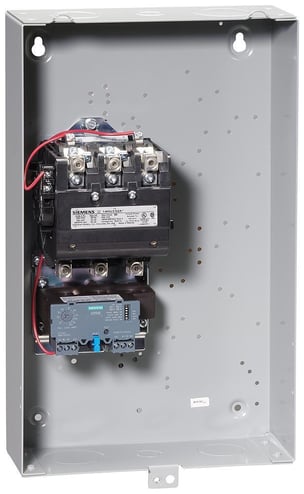

Siemens 14IUH32BC Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
Siemens 14IUH32BC Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
MPN 14IUH32BC
ASPN SIE14IUH32BC
UPC 783087949522
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 3-1/2
- Standard width enclosure
Specifications
GTIN: 00783087949522
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 14 W |
| Timing | 26 to 41 ms On/14 to 19 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 0 |
| Width | 3 in |
| Full Load Current | 50 to 200 A |
| Enclosure Type | NEMA 1 |
| Dimensions | 12 in W x 8 in D x 20 in H |
| Motor Power | 30 hp at 200/208 VAC, 40 hp at 220/230 VAC, 75 hp at 460/480/575/600 VAC |
| Coil Voltage | 190 to 220/380 to 440 V AC at 50 Hz, 220 to 240/440 to 480 V AC at 60 Hz |
| Connection Type | Box Lug/Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 115 A |
| Operating Cycles | 5000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
