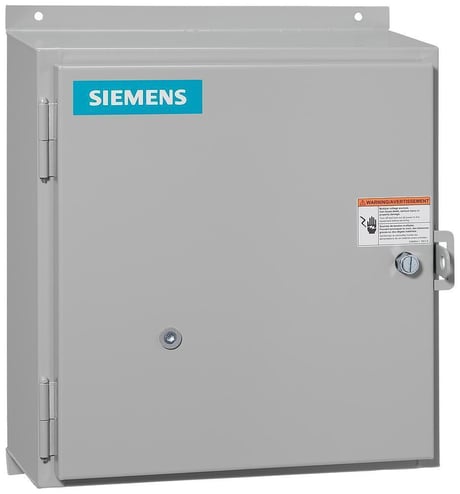

Siemens 14FUF820H Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
Siemens 14FUF820H Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
MPN 14FUF820H
ASPN SIE14FUF820H
UPC 783087947702
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Field convertible to NEMA 3/3R/4
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 2
- Dust/drip-proof enclosure
- Extra-wide enclosure
Specifications
GTIN: 00783087947702
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 8.6 W |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 77.9 lbs |
| Width | 0 |
| Full Load Current | 13 to 52 A |
| Enclosure Type | NEMA 12 |
| Dimensions | 13 in W x 6 in D x 16 in H |
| Motor Power | 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480/575/600 VAC |
| Coil Voltage | 380 to 440 V AC at 50 Hz, 440 to 480 V AC at 60 Hz |
| Connection Type | Box Lug/Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 45 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
