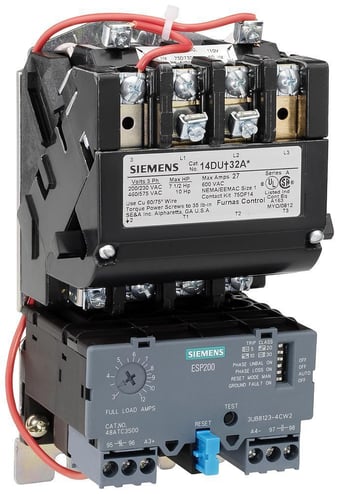

Siemens 14DUD32AF Class 14 Full Voltage Heavy Duty Motor Starter, 110 to 120 VAC V Coil, Non-Reversing/Non-Combination Action, 3 Poles, NEMA 1/Open Enclosure
Siemens 14DUD32AF Class 14 Full Voltage Heavy Duty Motor Starter, 110 to 120 VAC V Coil, Non-Reversing/Non-Combination Action, 3 Poles, NEMA 1/Open Enclosure
MPN 14DUD32AF
ASPN SIE14DUD32AF
UPC 783087817838
Description
Features
- Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils
- Easy coil access, overload test feature, straight thru wiring
- 3 hp at 200/230 VAC, 10 hp at 460/575 VAC
- Solid state or ambient compensated bimetal overload protection
- Wide range of accessories
Specifications
GTIN: 00783087817838
UNSPSC: 39121521
Country of Origin: Mexico
| Type | Class 14 Full Voltage Heavy Duty |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 1NO |
| Wattage | 8.6 W |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 120 V AC |
| Weight | 4.6 lbs |
| Enclosure Type | Open |
| Dimensions | 7.44 in H x 5.75 in W x 3.75 in D |
| Motor Power | 3 hp, 10 hp |
| Coil Voltage | 110 to 120 V AC |
| Connection Type | Thread |
| Action | Non-Reversing/Non-Combination |
| Reset Type | Automatic/Manual |
| Amperage Rating | 5.5 to 22 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
