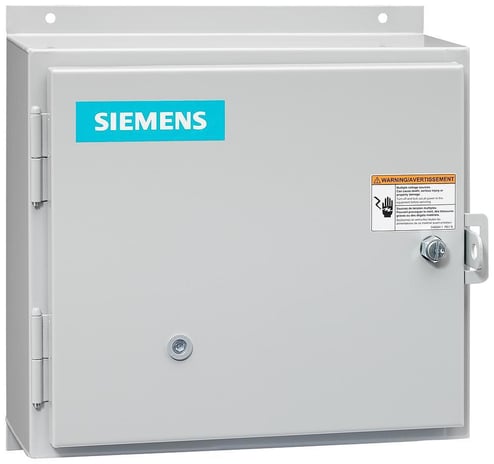

Siemens 14DUC120A SZ 1 Class 14 Full Voltage Heavy Duty Non-Combination Non-Reversing Standard Width NEMA Motor Starter, 110/110 to 120/190 to 220/220 to 240 VAC V Coil, 2 Poles, NEMA 12 Enclosure
Siemens 14DUC120A SZ 1 Class 14 Full Voltage Heavy Duty Non-Combination Non-Reversing Standard Width NEMA Motor Starter, 110/110 to 120/190 to 220/220 to 240 VAC V Coil, 2 Poles, NEMA 12 Enclosure
MPN 14DUC120A
ASPN SIE14DUC120A
UPC 887621010676
Description
Features
- Rugged industrial design
- Half sizes, space and cost savings
- Dual voltage and dual frequency coils
- Solid state or ambient compensated bimetal overload protection
- Easy coil access
- Overload test feature
- Straight through wiring
- Gravity dropout
- Large silver cadmium contacts
- 1/4 hp at 115 VAC, 1/2 hp at 200/208/220/230 VAC 1-phase motor power
- 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz coil voltage
Specifications
GTIN: 00887621010676
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | SZ 1 Class 14 Full Voltage Heavy Duty Non-Combination Non-Reversing Standard Width |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Number of Poles | 2 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Timing | 19 to 29 ms On, 10 to 24 ms Off |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 240 V AC |
| Weight | 0 lbs |
| Width | 3.6 in |
| Enclosure Type | NEMA 12 |
| Dimensions | 13 in H x 8 in W x 5 in D |
| Setting | 3 to 12 A |
| Motor Power | 1/4 hp, 1/2 hp |
| Coil Voltage | 110/110 to 120/190 to 220/220 to 240 V AC |
| Connection Type | Screw Terminal |
| Phase | 1 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 27 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
