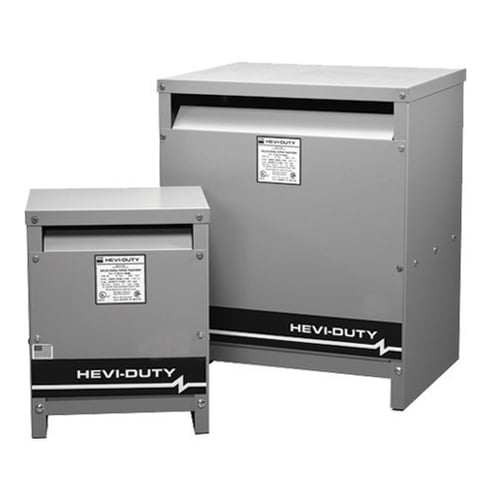

SolaHD K4E2H112S K-Factor Dry Ventilated Distribution Transformer, 480 Delta V Primary, 208Y120 V Secondary, 112.5 kVA Power Rating, 60 Hz, 3
SolaHD K4E2H112S K-Factor Dry Ventilated Distribution Transformer, 480 Delta V Primary, 208Y120 V Secondary, 112.5 kVA Power Rating, 60 Hz, 3
MPN K4E2H112S
ASPN SHDK4E2H112S
UPC 783472149445
Description
Features
- Conductors to carry harmonics of a K-rated load without exceeding insulation temperature ratings
- Shielded for quality power
- Basic design takes "stray losses" into account and functions within safe operating temperatures
- Core and coil design engineered to manage the zero sequence flux caused by triplen harmonics
- Provides 100% rated current without overheating the windings or saturating the core
- Meets transit test requirements for ISTA test procedure 1E for packaged product
- Quiet operation with sound levels 3 to 6 dB below the NEMA ST-20 requirements
- 135 A primary, 313 A secondary amperage rating
Specifications
GTIN: 00783472149445
UNSPSC: 39121001
Country of Origin: United States of America (the)
| Frequency Rating | 60 Hz |
|---|---|
| Weight | 0.1 lbs |
| Width | 27.3 in |
| Enclosure Type | NEMA 1 |
| Mounting Type | Floor |
| Phase | 3 |
| Temperature Rating | 150 deg C |
| BABA Compliant | No |
| Dimensions | 28 in L x 22 in W x 34 in H |
| Number of Taps | 7 |
| Winding Material | Aluminum |
| Maximum Amperage Rating | 135/313 A |
| Efficiency | 98.74 % |
| Type | K-Factor Dry Ventilated |
| Power Rating | 112.5 kVA |
| Primary Voltage | 480 Delta V |
| Secondary Voltage | 208Y/120 V |
| Insulation | 220 deg C |
| Sold as | EACH |
