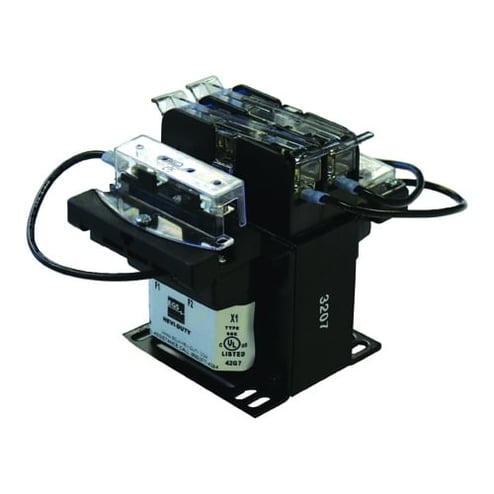

SolaHD E075WB SBE Encapsulated Midget Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.075 kVA Power Rating, 50/60 Hz, 1 Phase
SolaHD E075WB SBE Encapsulated Midget Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.075 kVA Power Rating, 50/60 Hz, 1 Phase
MPN E075WB
ASPN SHDE075WB
UPC 783472002429
Description
Features
- Interleaved copper windings reduce I2R losses and maximize efficiency
- Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
- Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
- Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
- Heavy gauge steel mounting plate
- Mounting dimensions are compatible with similar control transformers
- 131 deg F rise, 105 deg C insulation system to minimize heat
- Secondary fuse holder Midget cartridge for 13/32 x 1-1/2 in cartridges
Specifications
GTIN: 00783472002429
UNSPSC: 39121026
Country of Origin: Viet Nam
| Frequency Rating | 50/60 Hz |
|---|---|
| Weight | 2.4 lbs |
| Enclosure Type | IP20 |
| Insulation | 105 deg C |
| Mounting Type | Surface |
| Series | SBE |
| Phase | 1 |
| Primary Voltage | 240/480 VAC |
| Volume | 0 |
| BABA Compliant | No |
| Temperature Rating | 131 deg F |
| Power Rating | 0.075 kVA |
| Connection Type | Wire Lead |
| Secondary Voltage | 120 VAC |
| Dimensions | 3.99 in L x 3.01 in W x 4.18 in H |
| Type | Encapsulated Midget |
| Sold as | EACH |
