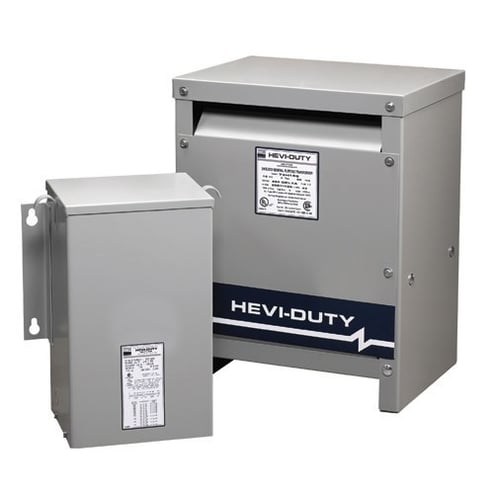

SolaHD DT651H27S Ventilated Drive Isolation Transformer, 460 VAC Primary, 266460 VAC Secondary, 27 kVA, 60 Hz, 3 ph Phase
SolaHD DT651H27S Ventilated Drive Isolation Transformer, 460 VAC Primary, 266460 VAC Secondary, 27 kVA, 60 Hz, 3 ph Phase
MPN DT651H27S
ASPN SHDDT651H27S
UPC 783472400461
Description
Features
- Taps on all units for adjustments to incoming source voltage
- Full capacity secondary neutral as required by the National Electric Code
- Shielding attenuates line to ground noise
- Isolation minimizes load disturbances caused by the SCR drive
- A transformer is needed to magnetically isolate the incoming line from the motor drive
- The transformer must also provide a voltage change to match the required voltage of the SCR drive
- Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits
- Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications
Specifications
GTIN: 00783472400461
UNSPSC: 39121029
Country of Origin: United States of America (the)
| Type | Ventilated |
|---|---|
| Enclosure Type | NEMA 3R |
| Dimensions | 28 in H x 23 in W x 16 in D |
| Mounting Type | Floor |
| Secondary Voltage | 266/460 V AC |
| Phase | 3 |
| Primary Voltage | 460 V AC |
| Power Rating | 27 kVA |
| BABA Compliant | No |
| Weight | 0.1 lbs |
| Frequency Rating | 60 Hz |
| Sold as | EACH |
