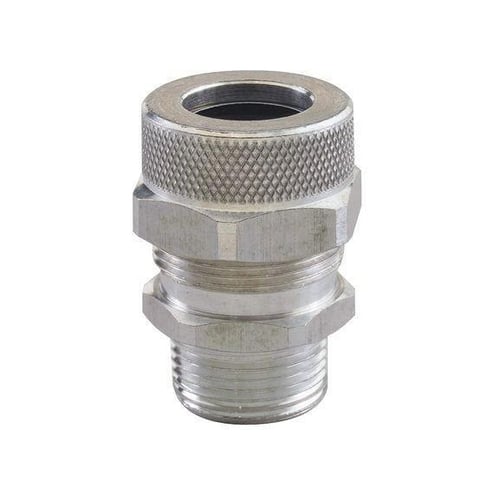

Remke Tuff-Seal™ RSR-2106 Straight Cord Grip Connector, 34 in Trade, 0.312 to 0.375 in Cable Openings, Aluminum


Description

Remke Tuff-Seal™ Straight Cord Grip Connector, Series: RSR, 3/4 in, Cable Openings: 0.312 to 0.375 in, NPT, Aluminum, -40 to 149 deg C, 1-1/4 in Dia

Tuff-Seal? RSR series aluminum cord grips are UL listed and CSA certified for use in both indoor and outdoor applications to prevent cable pullout, control arc of bend and to provide a tight seal against environmental elements such as dirt, moisture and coolants. The breadth of the line encompasses conduit sizes from 1/4 to 4 in with fittings offered in machined aluminum, nickel plated aluminum, steel, stainless steel, nylon and Valox?.

Features

  • A unique design with a combination tightening surface that includes both a hex area and a knurled surface
  • Optional embedded Viton® O-ring ensures a watertight and corrosion resistant seal
  • Aluminum excellent durability and performance for most industrial applications
  • Anti-friction washer that fits between the nut and bushing for easier compression
  • Metallic composition
  • NEMA 3, NEMA 3R, NEMA 4, NEMA 6 and NEMA 12 enclosure
  • IP52, IP54, IP65, IP67 IEC rating
  • 0.61 in ID
  • 0.56 in thread size
  • Form size 2

Specifications

GTIN: 00785411161068

UNSPSC: 39121431

Country of Origin: United States of America (the)

Weight
10 lbs
Cable Openings
0.312 to 0.375 in
Trade Size
3/4 in
Dimensions
1-1/4 in Dia
Series
RSR
Connection Type
NPT
Material
Aluminum
Temperature Rating
-40 to 149 deg C
BABA Compliant
No
Sold as
EACH
